R9696

Information - Help
ID = 58553

Country:
Great Britain (UK)
Brand: EMI; Hayes, Middlesex
Tube type:  Reflex Klystron   SHF/EHF (>3 GHz)
Identical to R9696

Base Miniatur-7-Pin-Base B7G, USA 1940
Filament Vf 6.3 Volts / If 0.8 Ampere / Indirect
Description

Disc-seal reflex klystron usable from 7.0 to 11.7 GHz, depending upon the external cavity.

  • 350 V typical resonator voltage
  • 30 to 50 mA resonator current
  • -50 to - 500 V reflector voltage
  • 5 yo 30 mW output power




Weight 620 g / 21.87 oz
Information source - - Manufacturers Literature

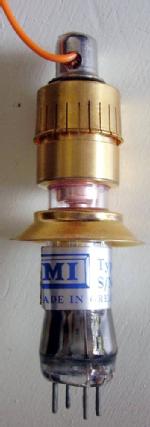

R9696: Private collection
Emilio Ciardiello



from Just Qvigstad
