RL247g

Information - Help
ID = 36262

Country:
Germany
Brand: Siemens; D (S.& Halske / S. Electrogeräte)
Tube type:  Solid-State-Diode   Detector
Identical to RL247g
First Source (s)
Mar.1960 : -- Collector info (Sammler)
Successor Tubes AA118

Base Wires
Was used by Radio/TV-reception etc.
Filament Solid State
Description

Germanium point contact detector diode as matched pair for phase discriminator.
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
5 x 13 x mm / 0.20 x 0.51 x inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   KTT 1969/70, DVT 1971
- - Manufacturers Literature   Siemens Taschenbuch 1963/64

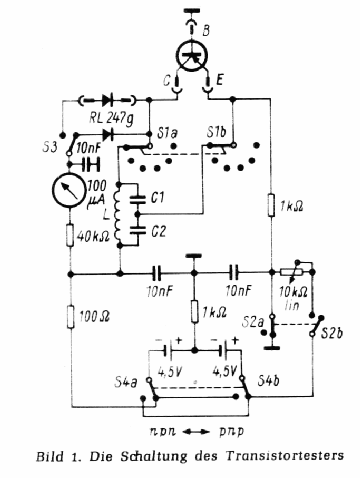

  RL247g: Funkschau 20/68 S.623
Egon Strampe

RL247g: Siemens Halbleiter Datenbuch 1961
Oskar Elm


RL247g: DVT 1971 ECA
Günther Stabe † 19.8.20


RL247g: Siemens Taschenbuch 1963/64
Anonymous 15 Collector
