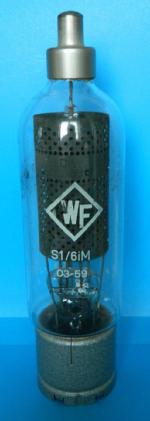

S1/6iM

Information - Help
ID = 33166

Country:
Germany
Brand: Werk für Fernmeldewesen (OSW, HF, WF) Berlin, VEB, RFT (Ostd.)
Tube type:  Thyratron   Power-supply
Identical to S1/6iM

Base SPECIAL TUBEBASE in general Top contact with a cap.
Was used by Industrial
Filament Vf 5 Volts / If 7 Ampere / Half indirect / Specified voltage AC/DC
Description

ûa sperr max: 1 kV
îk max: 6 A
Īk max: 2 A


Dimensions (WHD)
incl. pins / tip
60 x 235 x mm / 2.36 x 9.25 x inch
Weight 250 g / 8.82 oz
Information source - - Manufacturers Literature   RFT-Spezialröhren, 1960

s1_6im_sock.png S1/6iM: RFT-Spezialröhren 1960
Anonymous 15 Collector

S1/6iM: RFT-Spezialröhren 1960
Anonymous 15 Collector
