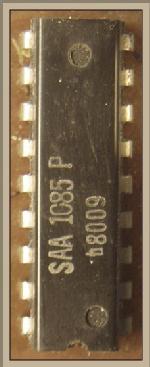

SAA1085

Information - Help
ID = 67819

Country:
Netherlands
Brand: Philips; Eindhoven (tubes international!); Miniwatt
Tube type:  IC - Integrated Circuit
Identical to SAA1085

Base SPECIAL TUBEBASE in general
Description

Aufbau/Content: IC (PMOS ?);
Form/Case/Outline: DIP-18 (SAA1085P);
Applikation/Type: - ? - ;
Daten/electr.data: Vcc: __ V; Icc: __ mA; Ptot: __ mW; t op: -__...+__ °C.
-


Dimensions (WHD)
incl. pins / tip
22 x 7 x 8 mm / 0.87 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz

dip_18_sot102~~79.gif SAA1085: TTT Steidle 1981
Günther Stabe † 19.8.20
