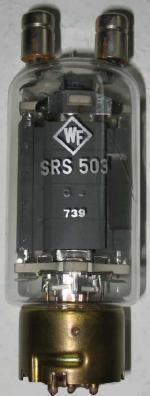

SRS503

Information - Help
ID = 23110

Country:
Germany
Brand: Phönix Röntgenröhrenwerk, Rudolstadt (Ostd.)
Tube type:  Transmitting Tube, Pentode, air cooled
Identical to SRS503
Successor Tubes SRS455

Base 2 Top contacts.
Filament Vf 12.6 Volts / If 3 Ampere / Direct / Parallel, (AC/DC)
Dimensions (WHD)
incl. pins / tip
60 x 165 x mm / 2.36 x 6.50 x inch
Weight 250 g / 8.82 oz
Information source

SRS503: SH
Sven Heymann


SRS503: RFT - Spezialröhren Ausgabe 1961
Andreas Hamel


SRS503: RFT - Spezialröhren Ausgabe 1961
Andreas Hamel


Usage in Models 1= 1956

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1
