TDA1576

Information - Help
ID = 46810

Country:
Netherlands
Brand: Philips; Eindhoven (tubes international!); Miniwatt
Tube type:  IC - Integrated Circuit   RF/IF-Stage
Identical to TDA1576
First Source (s)
Aug.1980 : Valvo-Berichte

Base SPECIAL TUBEBASE in general
Was used by Radio/TV-reception etc.
Description Aufbau/Content: IC (__ Trans., __ Widerst., __ Kond.);
Form/Case/Outline: DIP-18;
Type/Application: FM IF amplifier;
Daten/data: Ub: 7...16 V; Icc: __ mA; Pd: __ mW; t op: -__...+__ °C.
Dimensions (WHD)
incl. pins / tip
20 x 7 x 8 mm / 0.79 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source -- Original prospect or advert   Philips

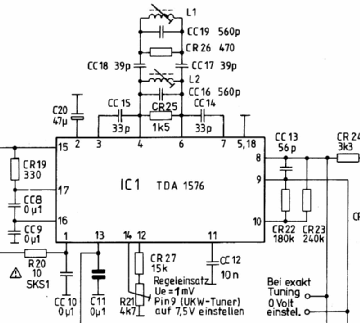

TDA1576: (schematic)
Günther Stabe † 19.8.20

dip18_sot102_1.gif TDA1576: TTT Steidle 1981
Günther Stabe † 19.8.20

TDA1576: Valvo
Günther Stabe † 19.8.20

Usage in Models 1= 1981? ; 1= 1982? ; 1= 1983? ; 1= 1984?? ; 1= 1985?? ; 2= 1987??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):7
