TDA7056

Information - Help
ID = 65042

Country:
Netherlands
Brand: Philips; Eindhoven (tubes international!); Miniwatt
Tube type:  IC - Integrated Circuit   Power/Output
Identical to TDA7056
Base Wires
Description

Aufbau/Content: IC (__ Trans., __ Widerst., __ Dioden);
Form/Case/Outline: SIP-9-H / SOT-110 (TDA7056[A]);

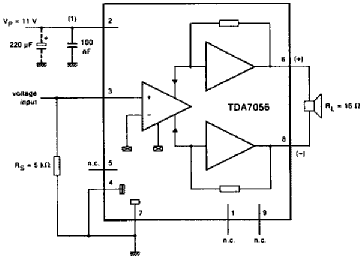

Applikation/Type: 3 W mono BTL Audio Output Amplifier @ 16 Ω;
Daten/electr.data: Vcc: 3...18 V, typ. 11 V; Iq: 5 mA; THD 0.25 %; tmax j: 150 °C;
-


Dimensions (WHD)
incl. pins / tip		 22 x 18 x 4 mm / 0.87 x 0.71 x 0.16 inch
Weight 4 g / 0.14 oz
Information source - - Manufacturers Literature   NXP
TDA7056: Philips
Günther Stabe † 19.8.20
sip_9_fin.gif TDA7056: Philips
Günther Stabe † 19.8.20
TDA7056: Philips
Günther Stabe † 19.8.20
Usage in Models 1= 1990?? ; 1= 2003 ; 1= 2005? ; 1= 2008?
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):4
