TDA9151

Information - Help
ID = 68086

Country:
Netherlands
Brand: Philips; Eindhoven (tubes international!); Miniwatt
Tube type:  IC - Integrated Circuit
Identical to TDA9151

Base SPECIAL TUBEBASE in general
Description

Aufbau/Content: IC (__ Trans., __ Widerst., __ Dioden);
Form/Case/Outline: DIP-20 (TDA9151B);
Applikation/Type: Programmable deflection controller;
Daten/electr.data: Vcc: 8 V; Icc: 27 mA; Pd: 220 mW; t op: -25...+70 °C.
-


Dimensions (WHD)
incl. pins / tip
25 x 7 x 8 mm / 0.98 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature

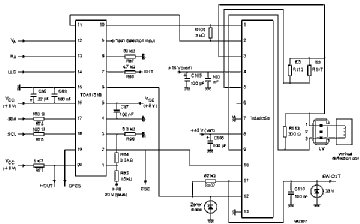

TDA9151: Philips
Günther Stabe † 19.8.20

tda9151_s.png TDA9151: Philips
Günther Stabe † 19.8.20

TDA9151: Philips
Günther Stabe † 19.8.20
