U114D

Information - Help
ID = 75364

Country:
Germany
Brand: Funkwerk Erfurt, VEB, RFT (Ostd.) - vorm. Telefunken GmbH
Tube type:  IC - Integrated Circuit   Text
Identical to U114D = TC8066

Base SPECIAL TUBEBASE in general
Was used by Technology / Measurement
Description

Aufbau/Content: IC (__ Trans., __ Widerst., __ Dioden);
Form/Case/Outline: DIP-10;
Applikation/Type: 4.19 MHz-Uhrenschaltkreis;
Daten/electr.data: Vcc: 1.5 V; Icc: __ mA; Pd: __ mW; t op: -10...+70 °C;

4,19-MHz-Uhrenschaltkreis, CMOS-Teiler mit Oszillatorstufe für den Einsatz in analog anzeigenden batteriebetriebenen Quarzuhren. f0 = 4,194304 MHz.

Entspricht Toshiba TC8066(PB).
-


Dimensions (WHD)
incl. pins / tip
15 x 5 x 8 mm / 0.59 x 0.20 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature   RFT-Katalog 1981

U114D: Schaltplan
Heribert Jung

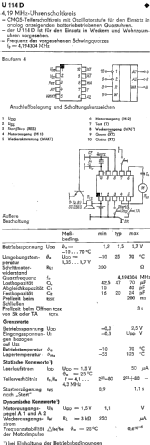

U114D: RFT Halbleiter-Bauelemente-Katalog 1981
Wolfgang Eckardt
