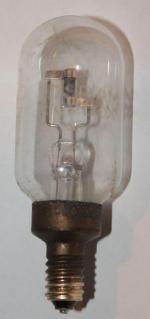

U536

Information - Help
ID = 78864

Country:
Germany
Brand: Osram GmbH KG; Berlin
Tube type:  Current Regulator, Urdox without FeH   Power-supply
Identical to U536

Base Edison small E10 = 10 mm
Was used by Radio/TV-reception etc.
Filament If 0.36 Ampere / Specified current AC/DC ~ = (Series working)
Dimensions (WHD)
incl. pins / tip
27 x 77 x mm / 1.06 x 3.03 x inch
Weight 14 g / 0.49 oz

sockel_11_kopie~~18.png U536: Beier, Röhrentaschenbuch 1958
Oskar Elm


Just Qvigstad
Usage in Models 1= 1934

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1

Collection of



U536
