ВС-4,8vs-4,8
Country:
Soviet Union
|
|
Identical to |
ВС-4,8
|
Base |
Octal (Int.Octal, IO) K8A, USA 1935
|
Dimensions (WHD) incl. pins / tip |
40 x 102 x mm / 1.57 x 4.02 x inch |
Weight |
125 g / 4.41 oz |
ВС-4,8: Datenblatt ZAB 12
Alfred Klich
|
|
Just Qvigstad
|
ВС-4,8: o
Anonymous 15 Collector
|
Collection of
Collection of a member from D
|
|
|
|
Forum contributions about this tube
ВС-4,8
Threads: 1 | Posts: 1
Hits: 2878 Replies: 0
Zerhacker (Zerhacker)
|
Karlheinz Fischer
05.Jan.11
|
1

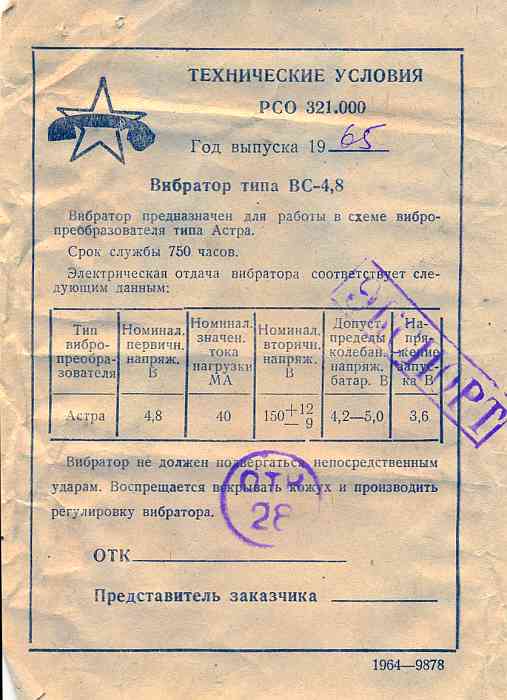

Ein Beizettel einer neuen russischen Zerhackerpatrone BS 4,8 ist zu lesen.
Text auf Deutsch
- Fertigung 1965
- Umformer Typ/Modell BS-4,8
- Nutzungsdauer 750 Std.
- Typ Astra
- Nennspannung 4,8 V
- Nennstrom 40 mA
- Nennspannung/Folgespannung 150/+12,-9 V
- Zulässiger Wert Battriespannung 4,2 - 5 V
- Startspannung 3,6 V
Gehäuse nicht öffnen
Die Bilder der 4,8 und 12,8 sind Hochgeladen
Orginal Beipackzettel in unterer Datei
K.H.
Attachments
|
ВС-4,8
