VX5029

Information - Help
ID = 32363

Country:
Great Britain (UK)
Brand: EMI; Hayes, Middlesex
Tube type:  Reflex Klystron   SHF/EHF (>3 GHz)
Identical to VX5029
Similar Tubes
Normally replaceable-slightly different:
  CV2116
Successor Tubes CV2116

Base Miniatur-7-Pin-Base B7G, USA 1940 Top contact with a cap.
Filament Vf 6.3 Volts / If 0.65 Ampere / Indirect / Specified voltage AC/DC
Description External cavity oscillator tube. 1.8 to 4.5 GHz.

The construction and electrodes differ between this prototype and the CV2116, the production tube.
Dimensions (WHD)
incl. pins / tip
27 x 78 x mm / 1.06 x 3.07 x inch
Weight 34 g / 1.20 oz
Information source - - Manufacturers Literature
- - -
- - -
- - -

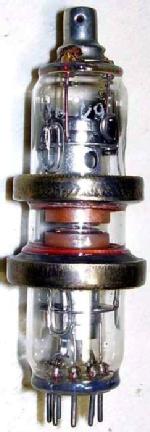

VX5029: Private collection
Emilio Ciardiello



from Just Qvigstad
