ZL3,9

Information - Help
ID = 46323

Country:
Germany
Brand: Intermetall Halbleiterwerk, Düsseldorf
Tube type:  Solid-State-Diode   Power-supply
Identical to ZL3,9

Base Wires
Description Silicon reference regulator diode 3.9 V 12.5 W.

Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
8 x 20 x mm / 0.31 x 0.79 x inch
Weight 4 g / 0.14 oz
Information source - - -
- - -   KTT 1969/70, ITT Datenblatt
- - -
- - -

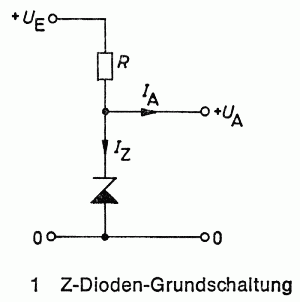

ZL3,9: ITT Schaltbeispiele 1967
Günther Stabe † 19.8.20

do4_19.gif ZL3,9: DVT 1971 ECA
Günther Stabe † 19.8.20

ZL3,9: ITT
Thomas Günzel † 1.8.22
