• Year
  • 1957/1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 17510
    • Brand: VEB Elektromaschinenbau Sachsenwerk

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 6 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

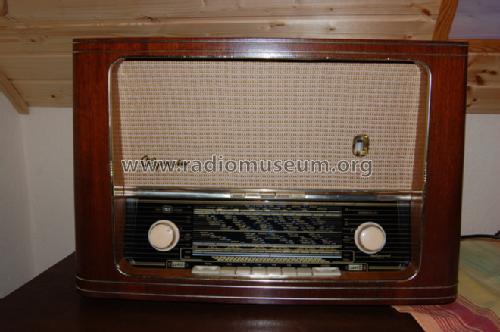

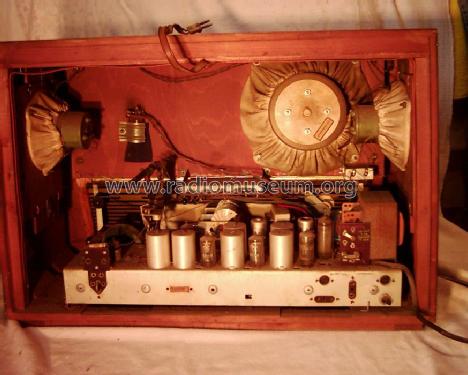

  • Model: Olympia 571W - Sachsenwerk Niedersedlitz,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 630 x 415 x 310 mm / 24.8 x 16.3 x 12.2 inch
  • Notes
  • Drehbare Ferritant. [596-38B]; 1x 6-W-Lautsprecher, 2x 1,5-W-Hochton-LS, Duplexantrieb, Fernbedienung FB57 anschließbar, getrennte H/T-Regler. Schaltbild KR 2151. Auch mit ZF-Filtern 437 kHz. UKW-Baustein 1958 verändert mit 210 MHz-Kurzschlussleitung im Eingang.- Varianten: 571W/L und 571W/P.
  • Net weight (2.2 lb = 1 kg)
  • 18 kg / 39 lb 10.4 oz (39.648 lb)
  • Price in first year of sale
  • 570.00 DM
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
