Beethoven II (2) 1142.002 ab Ser.Nr.570001 Diskantschalter am Höhenregler (Sopran)

Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG

  • Year
  • 1956/1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 16694

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • Superhet with RF-stage; ZF/IF 440/10700 kHz
  • Tuned circuits
  • 9 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 8 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Beethoven II 1142.002 ab Ser.Nr.570001 [Diskantschalter am Höhenregler ] - Stern-Radio Rochlitz, VEB, RFT
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 655 x 455 x 325 mm / 25.8 x 17.9 x 12.8 inch
  • Notes
  • Diskantschalter am Höhenregler (Sopran), keine eigene Diskanttaste. Kurzwelle auf 3 Bereiche je 2 Bänder gespreizt.
  • Net weight (2.2 lb = 1 kg)
  • 22 kg / 48 lb 7.3 oz (48.458 lb)
  • Price in first year of sale
  • 918.00 DM
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV.

 Collections | Museums | Literature

 Forum

Forum contributions about this model: Stern-Radio Rochlitz: Beethoven II 1142.002 ab Ser.Nr.570001

Threads: 4 | Posts: 13



Dear Guests

I’m trying to restore a Stern-Rochlitz Beethoven 1, with IL taste.

I’ve bought the radio in Germany, and it arrived here already restored in the electronic side.

All power supply eletrolithics, non electrolitics capacitor had been replaced by someone with new ones.

It seems that the restoration has been made up well: the reception is very good, with high sensitivity and strong adjacent channel rejection,

Unfortunately both with FM and CD in, at medium/high volume, I hear a too strong bass presence, with low frequency very distorced and “woofing”,

This makes the listening impossible, because the basses are very distorced.

I’ve tried to change all the capacitor in the feedback final stage with new ones. I tried to change the two EL84 for medium-low frequency circuit branch, and the ECC83

but the result is the same. I can’t imagine that this radio should play in that horrible way...

May You kindly help me?

Cordially

Riccardo



Riccardo Coradazzi, 30.Jun.10

Weitere Posts (2) zu diesem Thema.

Hello, I buyed recently a RFT Beethoven II and I am restoring it.
I needs ito know the scheme of the tuning FM ropes because it lacked and I have some difficulty to reconstruct the exact scheme.

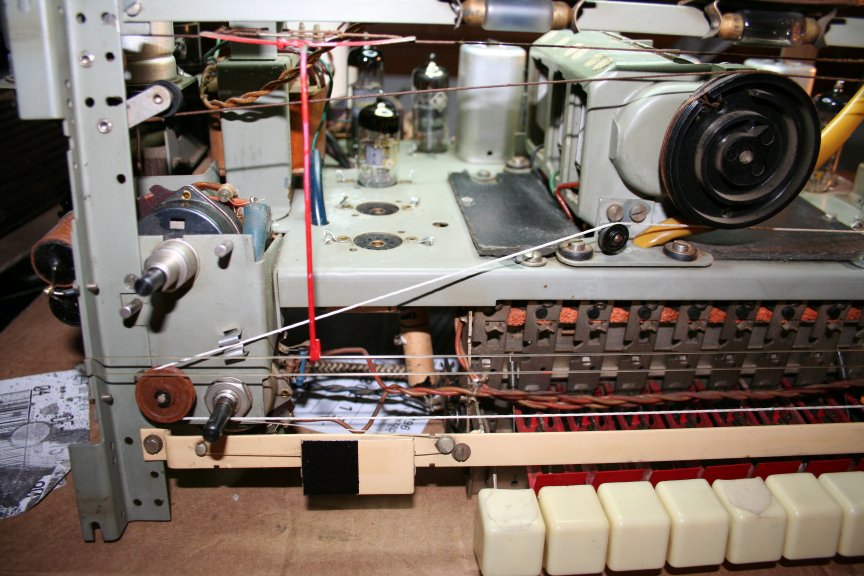

For to be correct the rope always exits from the guide A and I don't know if the guide B was used?
Someone can help me?
Thanks Giovanni - Venice

Attachments

Giovanni Saoner, 14.Jun.07

Weitere Posts (6) zu diesem Thema.


Hallo Radiofreunde,
ich suche den Seillaufplan (AM+FM) für dieses Gerät möglichst aus den original - Werkstattbuch.
Kann jemand helfen?

Sehr interessant ist die mechanische Realisierung des Duplexantriebes. Eine Kupplung verbindet jeweils den AM- oder FM- Antrieb über eine dünne Gummischeibe ohne jegliches Spiel oder Schlupf. Der Anpressdruck wird über federnd in der Antriebswelle sitzender Kugeln realisiert. So wird ein überaus sanftes Umschalten der Antriebe erreicht, wobei nicht die geringste Verstellung der jeweiligen Einstellposition der Senderwahl eintritt.

Auch das Skalenseil wird über Seilrollen, welche an einem federnd gelagerten Arm montiert sind, permanent gespannt. Eine aufwendige Konstruktion in einem Spitzengerät der DDR-Produktion aus den Jahre 1956.

Vielen Dank für die Mühe und Hilfe!
Jens Dehne

Jens Dehne, 01.Mar.05

Weitere Posts (4) zu diesem Thema.

Das Chassis des Beethoven wurde in die Rafena Fernsehtruhe "Clivia II" und in den Fernsehmusikschrank "Cabinet " eingebaut.

Die Ausführung der Typen:

Clivia II

Fernsehchassis FE 855 mit 43cm Bildröhre, Rundfunkgerät " Beethoven" mit Originallautsprecherkombination bestehend aus einen Tiefton-,einem Hochton- und zwei Mitteltonlautsprechen

Cabinet

Fernsehchassis FE 855 mit 53cm Bildröhre Rundfunkteil "Beethoven", Tonbandgerät "Smaragd BG20" und Plattenspieler für 78,45 und 33 Umdrehungen Typ "Zittau 8422.10/10. Die Cabinet-Truhe ist mit 6 Lautspechern jeweils 2 Mittelton- Hochton- und Tiefton bestückt.

 Bildbreite korrigiert

Jörg Kulbe, 27.Jun.04

Weitere Posts (1) zu diesem Thema.
