4892 Ch= Rc

4892 Ch= Rc; ACEC, Ateliers de (ID = 2055685) Television 4892 Ch= Rc; ACEC, Ateliers de (ID = 2055687) Television

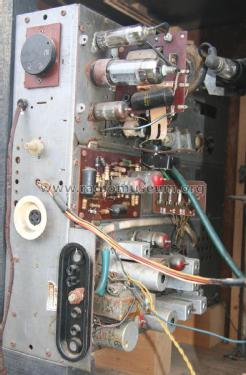

4892 Ch= Rc; ACEC, Ateliers de (ID = 2055688) Television 4892 Ch= Rc; ACEC, Ateliers de (ID = 2055689) Television
4892 Ch= Rc; ACEC, Ateliers de (ID = 2055691) Television 4892 Ch= Rc; ACEC, Ateliers de (ID = 2055692) Television
Use red slider bar for more.
4892 Ch= Rc; ACEC, Ateliers de (ID = 2055685) Television
ACEC, Ateliers de: 4892 Ch= Rc [Television] ID = 2055685 1400x815
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4892 Ch= Rc, ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi:
Gerät von Freund Han Bex

Country:  Belgium
Manufacturer / Brand:  ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Year: 1957/1958 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PCC88 PCF80 EF80 EF80 EF80 EF80 PL83 ECC81 EF80 EF80 EF80 EF83 PL84 PCF80 PCF80 PL36 PY81 DY86 ECC81 PCL82 27RP4
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage AC/DC-set / AC: 110; 127; 220 / DC: 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 4892 Ch= Rc - ACEC, Ateliers de
Material Wooden case
Shape Console with Push Buttons.
Notes

Only  VHF



Mentioned in -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.
