Stereo 5820

Stereo 5820; ACEC, Ateliers de (ID = 550833) Radio Stereo 5820; ACEC, Ateliers de (ID = 550835) Radio
Stereo 5820; ACEC, Ateliers de (ID = 550836) Radio Stereo 5820; ACEC, Ateliers de (ID = 550837) Radio

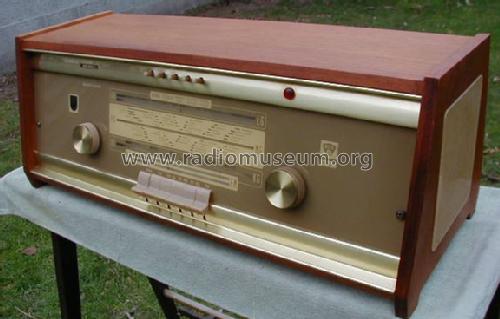

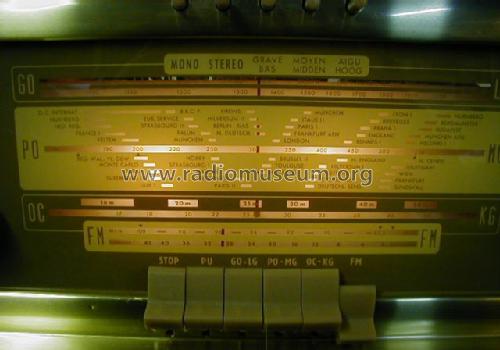

Stereo 5820; ACEC, Ateliers de (ID = 550838) Radio Stereo 5820; ACEC, Ateliers de (ID = 550839) Radio
Use red slider bar for more.
Stereo 5820; ACEC, Ateliers de (ID = 550833) Radio
ACEC, Ateliers de: Stereo 5820 [Radio] ID = 550833 512x224
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo 5820, ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi:
aus ebay, mit Erlaubnis des Verkäufers em85

Country:  Belgium
Manufacturer / Brand:  ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EBF89 EM80 EAA91 ECC83 EL84 EL84 EZ81
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Stereo 5820 - ACEC, Ateliers de
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 25 x 10 x 10.5 inch / 635 x 254 x 267 mm
Notes ACEC Stereo 5820;
FM up to 100 MHz, SW: 16 - 50 m band, mono/stereo switch, three button sound equalizer, DIN terminals, tuning indicator tube, balance control.
Source of data -- Collector info (Sammler)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
