- Land
- Grossbritannien (UK)
- Hersteller / Marke
- Quad (Brand); Acoustical Manufacturing Co. Ltd.; Huntingdon
- Jahr
- 1954 ?

- Kategorie
- NF-(Niederfrequenz-) Verstärker oder -Mixer
- Radiomuseum.org ID
- 110849
Klicken Sie auf den Schaltplanausschnitt, um diesen kostenlos als Dokument anzufordern.
- Anzahl Röhren
- 5
- Hauptprinzip
- NF-Verstärkung
- Wellenbereiche
- - ohne
- Betriebsart / Volt
- Wechselstromspeisung / 100-130 / 200-250 Volt
- Lautsprecher
- - Dieses Modell benötigt externe(n) Lautsprecher.
- Belastbarkeit / Leistung
- 15 W (Qualität unbekannt)
- Material
- Metall, SICHTBARE RÖHREN
- von Radiomuseum.org

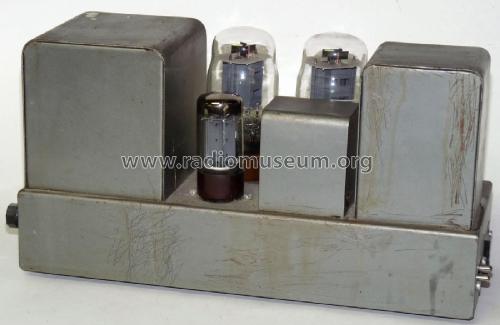

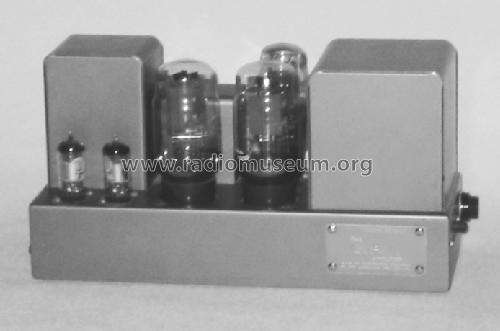

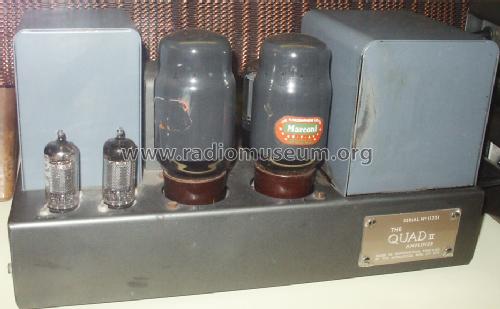

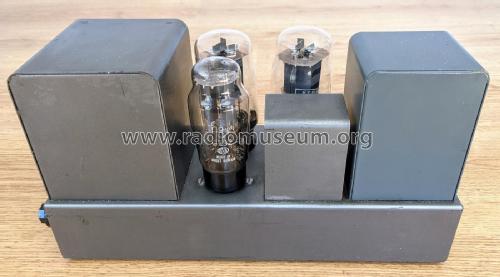

- Modell: Quad II - Quad Brand; Acoustical
- Form
- Tischmodell, Zusatz nicht bekannt - allgemein.
- Abmessungen (BHT)
- 330 x 125 x 165 mm / 13 x 4.9 x 6.5 inch
- Bemerkung
-

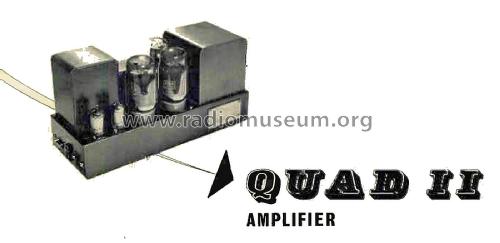

Monaural power amplifier. Also power supply for the accompanying Quad QC II control unit and Quad FM tuners.
This complex consists of 2 devices: The QC11 preamplifier-equalizer equipped with 2 tubes, all necessary inputs and all adjustments. This preamplifier-equalizer drives the QUAD II power amplifier. The complex has a frequency response from 20 to 20,000 Hz with a linearity within 0.2 dB, and a response from 10 to 50,000 Hz within 0.5 dB. The power amplifier provides an output of 15 Watts in the range from 20 to 20,000 Hz.
These characteristics are contained in image 1007661.EE: We need a proof that this unit was sold already in 1953 as it was given before my correction.
- Nettogewicht
- 8.3 kg / 18 lb 4.5 oz (18.282 lb)
- Originalpreis
- 466.00 DM
- Literaturnachweis
- High Fidelity Jahrbuch 1967/68
- Literatur/Schema (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1427 from 1959!)
- Literatur/Schema (2)

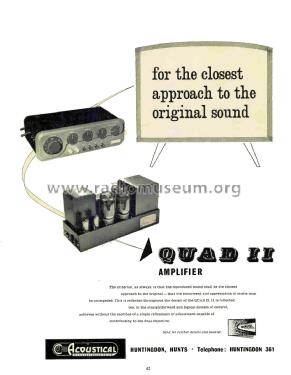

- -- Original prospect or advert (Alta Fedeltà, Italian Magazine, number 2 June 1957)
