- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- 1951 ?
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- alternative name: Continental Radio & TV

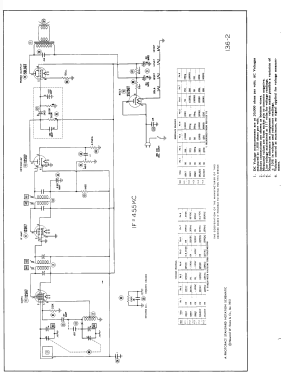

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117V = 110 -120 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 5J21 Ch= 5J2 - Admiral brand Continental
- Tablemodel, with any shape - general.
Admiral model 5J21 is an AC-DC operated superheterodyne receiver with loop antenna.
Color= Ebony, chassis 5J2 is identical to 5E2.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 11, 1951
- Literature/Schematics (1)
- Rider's Perpetual, Volume 22 = covering 1951
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Date 6-1951, Set 136, Folder 2)
- Literature/Schematics (3)
- Photofact Folder, Howard W. SAMS (Set 136, folder 2, dated 6-51)
- Other Models
Here you find 3151 models, 1315 with images and 2517 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Admiral (brand) Continental Radio & Television Co.; Chicago, IL
Forum contributions about this model: Admiral brand: 5J21 Ch= 5J2
Threads: 2 | Posts: 2
The Sams photofact with 136-2 on it at first glance on the screen looks like the 50L6 has a #1 pin connection however when enlarged/ printed it is an 8. The other schematics on the various iistings here have a #1 when enlarged or printed out. Also this schematic has the correct and easier to understand boxed in area for C7/R5 which is a combined Capacitor and resistor that looks like a 2x3 cm square flat capacitor. The boxed in area with it's individual parts diagrammed out allowed me to easily replace the combined part with 5 different resistors and capacitors .
Michael Saija, 15.Jun.19
The 50L6 tube has NO number 1 pin. The schematics show a 150 ohm resistor from pin 1 to chassis ground however in reality ( and it shows on the Sams photo's) the number 1 position on the socket is grounded to chassis. The 150 ohm resistor actually goes from the #8 pin to the #1 pin socket position and thence to chassis ground.
Michael Saija, 15.Jun.19
