42 WU / K

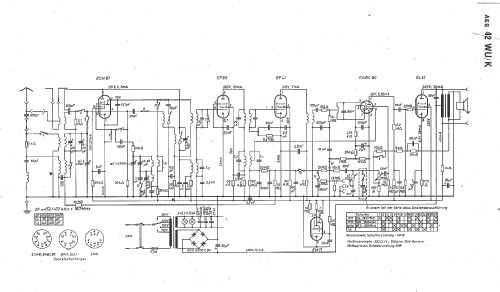

42 WU / K; AEG Radios Allg. (ID = 11657) Radio

42 WU / K; AEG Radios Allg. (ID = 310033) Radio

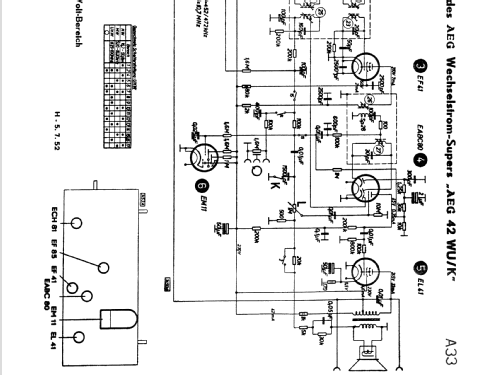

42 WU / K; AEG Radios Allg. (ID = 310034) Radio

42 WU / K; AEG Radios Allg. (ID = 1021098) Radio

42 WU / K; AEG Radios Allg. (ID = 1021107) Radio
42 WU / K; AEG Radios Allg. (ID = 13634) Radio 42 WU / K; AEG Radios Allg. (ID = 13635) Radio

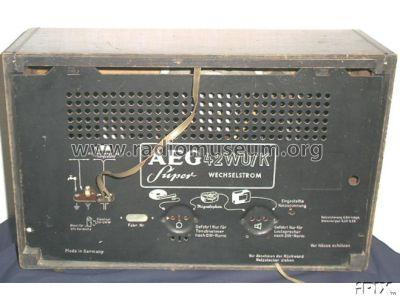

42 WU / K; AEG Radios Allg. (ID = 13636) Radio 42 WU / K; AEG Radios Allg. (ID = 1175858) Radio
Use red slider bar for more.
42 WU / K; AEG Radios Allg. (ID = 13634) Radio
AEG Radios Allg.: 42 WU / K [Radio] ID = 13634 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model 42 WU / K, AEG (Radios) Allg.Elektricitäts-Ges.:
Bild aus ebay.de

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EF85 EF41 EABC80 EM11 EL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: 42 WU / K - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 330 x 210 mm / 20.1 x 13 x 8.3 inch
Notes

Bei UKW Abstimmung mittels Variometer.

Es gibt auch eine Variante, bei der die AM - ZF  472 kHz beträgt.

Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 258.00 DM
Source of data Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb
