• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 233

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

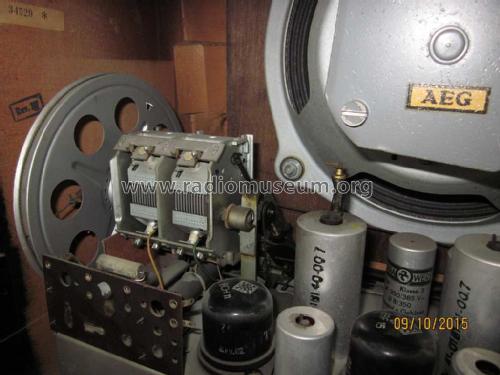

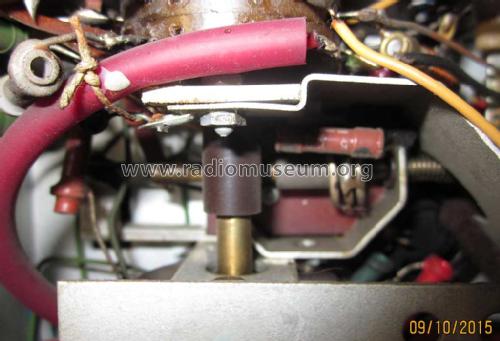

• Valves / Tubes
• ECH11 EBF15 EF14 EAA11 EM11 ECL11 UY11

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

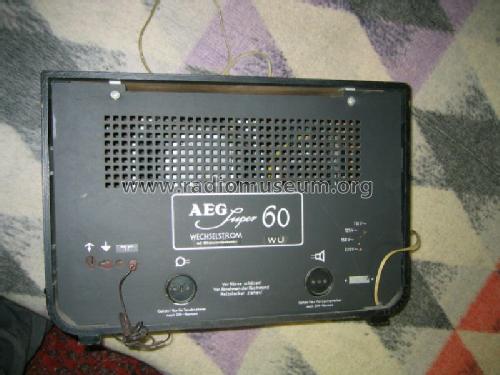

• Model: AEG Super 60 WU 60WU - AEG Radios Allg.Elektricitäts-

• Shape

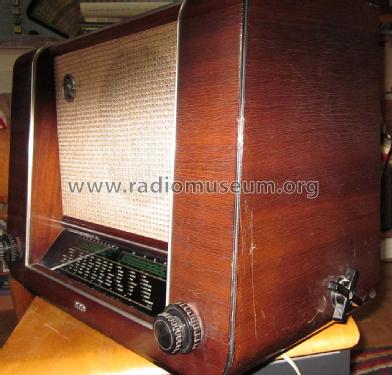

• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 560 x 390 x 250 mm / 22 x 15.4 x 9.8 inch

• Notes
• variable Bandbreite; KW-Lupe Don't fill in the maker in the «simple search» but only the type number 60 or 60WU without «Super». We have mentioned these expressions here just to tell you this. Normally you find 60 or 60WU etc. but not AEG Super 60 WU.
  AEG 60WU ist technisch identisch zu Telefunken Opus 50 UKW.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 435.00 DM

• Source of data
• Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange Schaltungen der Funkindustrie, Buch 1
