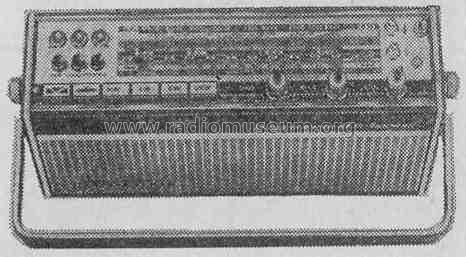

Bajazzo de Luxe 3611
AEG (Radios) Allg.Elektricitäts-Ges.
- Country
- Germany
- Manufacturer / Brand
- AEG (Radios) Allg.Elektricitäts-Ges.
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 112176

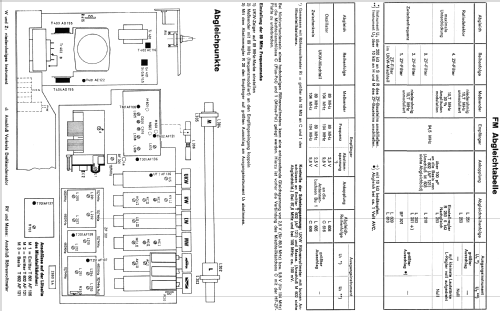

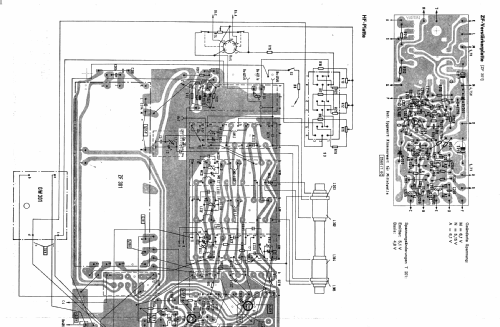

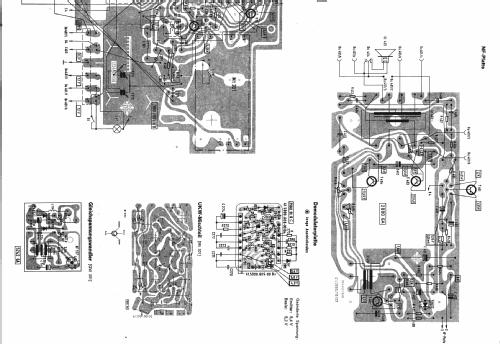

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Semiconductors
- AF106 AF121 AF136 AF136 AF138 AF137 AC122 AC116 AD155 AD155 AF137 BA124 AA112 OA161 BZY85 St0,9/0,5
- Main principle
- Superhet with RF-stage; ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Batteries / addl. power jack / D: 6 x 1.5 / DC 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2.5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Bajazzo de Luxe 3611 - AEG Radios Allg.Elektricitäts-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 320 x 190 x 90 mm / 12.6 x 7.5 x 3.5 inch
- Notes
-
KW-Lupe; 3 UKW-Festsendertasten; Fernbedienung für Lautstärke und UKW-Senderwahl; bei Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie beträgt die NF-Ausgangsleistung 5 W. Netzbetrieb mit Netzteil möglich. Gewicht incl. Batterien.
Baugleich mit Telefunken Bajazzo de Luxe 3611.
- Net weight (2.2 lb = 1 kg)
- 3.2 kg / 7 lb 0.8 oz (7.048 lb)
- Source of data
- Handbuch VDRG 1965/1966
- Mentioned in
- Handbuch RFP 1965/66 S.252
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
- Other Models
-
Here you find 842 models, 732 with images and 419 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from AEG (Radios) Allg.Elektricitäts-Ges.
