Bajazzo de Luxe 3611; Telefunken (ID = 318093) Radio

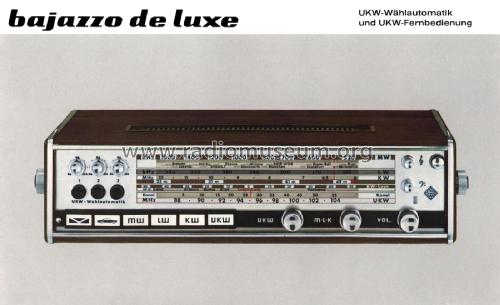

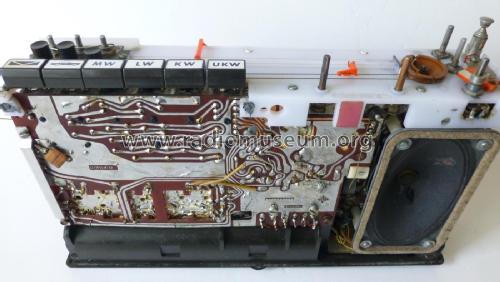

Telefunken: Bajazzo de Luxe 3611 [Radio] ID = 318093 664x700

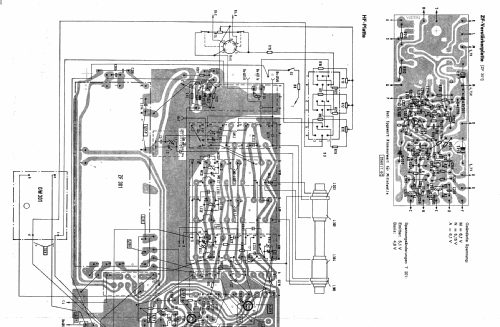

Select picture or schematic to display from thumbnails on the right and click for download.
For model Bajazzo de Luxe 3611, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: AF106 AF121 AF136 AF136 AF138 AF137 OC604 AC122 AC116 AD155 AD155
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Bajazzo de Luxe 3611 - Telefunken Deutschland TFK,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 190 x 90 mm / 12.6 x 7.5 x 3.5 inch
Notes KW-Lupe; bei Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie beträgt die NF-Ausgangsleistung 5 W. Netzbetrieb mit Netzteil möglich.
Baugleich mit AEG Bajazzo de Luxe 3611.
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Collectors' prices
Source of data Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3412 models, 2978 with images and 1962 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Telefunken: Bajazzo de Luxe 3611
Threads: 2 | Posts: 5
Hits: 1592     Replies: 3
telefunken: 3611; Bajazzo de Luxe
Simone Bongiovanni
14.Apr.13
  1

Good Morning,



I'm trying to fix a bajazzo de luxe radio that has evidently problems in the final Low Frequency amplifier.

A AD 155 transistor seems not working (completely dead) and I looking for a substite in ebay.

Are both AD 155 transistrs PNP geramanium transistors??? The schema that I found here shows one as NPN transistror.



regards

Simone

Attachments

Marc Gianella
15.Apr.13
  2

Hi Simone

Looking at the schematic I downloaded years ago, both trnsistors of the final AF stage are of pnp type (Emitter arrow tip against baseline).

It is recommended to use a suitable replacement (DC amplification "Beta" similar with the good one, measured at the working point) or use a matched pair.
Imho 2SB367 should also work instead of the proposed replacement type AD162.

Moreover I recommend to inspect the wiring around and the windings of the output transformer in order to eliminate the possibility of the same failure again.

Good luck!
Kind regards, Marc

Simone Bongiovanni
15.Apr.13
  3

Grazie per la risposta, sei stato gentilissimo.

Ho trovato su e-bay.de due transistror AD 162 nuovi per soli 2 euro e li ho comprati subito!

ti farò sapere.



buona serata

Simone



Simone Bongiovanni
05.May.13
  4

Yesterday I worked with the radio.

I have substituted the defective transistror with the substitute.

Now it works very well.

thank you for the advice.




Hits: 2285     Replies: 0
telefunken: 3611; Bajazzo de Luxe
Stephan Manthei
26.Aug.08
  1

Zu dem Modell Bajazzo 3611 gehört ein Adapter ,der mit dem größeren Stecker auf der Unterseite des

Radios angeschlossen wird. Ich bitte um Informationen zum Zweck dieses Adapters und der Kontakt-

belegung.

Schöne Grüsse

S.Manthei

Attachments


Telefunken: Bajazzo de Luxe 3611
