Bimby poliert

Bimby ; AEG Radios Allg. (ID = 2550421) Radio

Bimby ; AEG Radios Allg. (ID = 2550422) Radio

Bimby ; AEG Radios Allg. (ID = 2550423) Radio

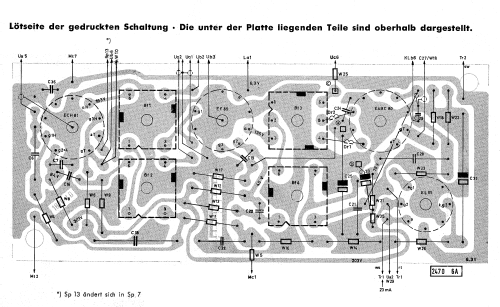

Bimby ; AEG Radios Allg. (ID = 2550424) Radio
Bimby ; AEG Radios Allg. (ID = 2550332) Radio Bimby ; AEG Radios Allg. (ID = 2550333) Radio
Bimby ; AEG Radios Allg. (ID = 2550334) Radio Bimby ; AEG Radios Allg. (ID = 2550419) Radio
Bimby ; AEG Radios Allg. (ID = 2550335) Radio Bimby ; AEG Radios Allg. (ID = 2550336) Radio
Bimby ; AEG Radios Allg. (ID = 2550337) Radio Bimby ; AEG Radios Allg. (ID = 2550339) Radio
Bimby ; AEG Radios Allg. (ID = 41368) Radio
Use red slider bar for more.
Bimby ; AEG Radios Allg. (ID = 2550332) Radio
AEG Radios Allg.: Bimby [Radio] ID = 2550332 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bimby poliert, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EABC80 EL95
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Bimby [poliert] - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 390 x 215 x 185 mm / 15.4 x 8.5 x 7.3 inch
Notes
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 258.00 DM
External source of data Erb
Source of data Handbuch VDRG 1962/1963
