Bimby 1451

Bimby 1451; AEG Radios Allg. (ID = 50995) Radio

Bimby 1451; AEG Radios Allg. (ID = 50996) Radio
Bimby 1451; AEG Radios Allg. (ID = 472330) Radio Bimby 1451; AEG Radios Allg. (ID = 472329) Radio
Bimby 1451; AEG Radios Allg. (ID = 472332) Radio Bimby 1451; AEG Radios Allg. (ID = 39551) Radio

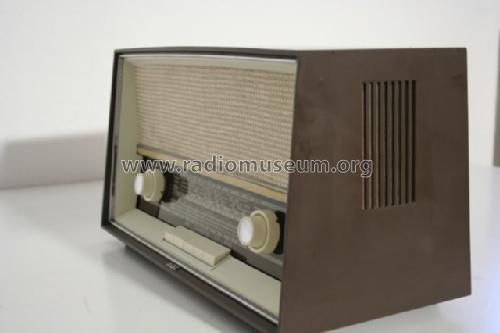

Bimby 1451; AEG Radios Allg. (ID = 39552) Radio Bimby 1451; AEG Radios Allg. (ID = 472326) Radio
Bimby 1451; AEG Radios Allg. (ID = 472328) Radio Bimby 1451; AEG Radios Allg. (ID = 472331) Radio

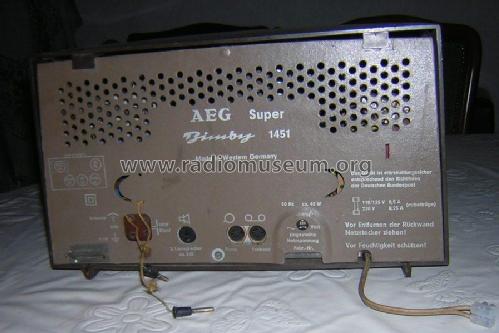

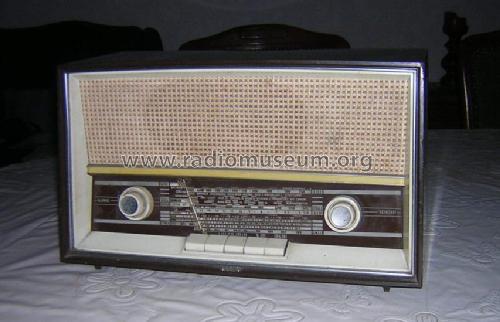

Bimby 1451; AEG Radios Allg. (ID = 1857312) Radio Bimby 1451; AEG Radios Allg. (ID = 1857313) Radio
Use red slider bar for more.
Bimby 1451; AEG Radios Allg. (ID = 472330) Radio
AEG Radios Allg.: Bimby 1451 [Radio] ID = 472330 640x427
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bimby 1451, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1963–1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EABC80 EL95
Semiconductors (the count is only for transistors) B250C75
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Bimby 1451 - AEG Radios Allg.Elektricitäts-
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 365 x 215 x 185 mm / 14.4 x 8.5 x 7.3 inch
Notes

Parallelgerät zum Telefunken Caprice 1451.

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Price in first year of sale 239.00 DM
External source of data Erb

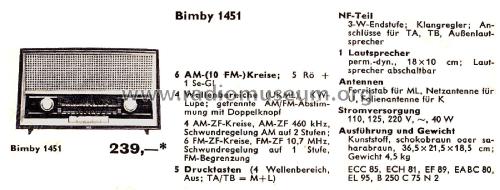

Source of data Handbuch VDRG 1963/1964
Literature/Schematics (1) -- Original-techn. papers.
