Condor 431W

Condor 431W; AEG Radios Allg. (ID = 5914) Radio

Condor 431W; AEG Radios Allg. (ID = 238182) Radio
Condor 431W; AEG Radios Allg. (ID = 105422) Radio Condor 431W; AEG Radios Allg. (ID = 1731047) Radio
Condor 431W; AEG Radios Allg. (ID = 906812) Radio Condor 431W; AEG Radios Allg. (ID = 105425) Radio
Condor 431W; AEG Radios Allg. (ID = 105426) Radio Condor 431W; AEG Radios Allg. (ID = 906814) Radio
Condor 431W; AEG Radios Allg. (ID = 906822) Radio Condor 431W; AEG Radios Allg. (ID = 1422250) Radio
Condor 431W; AEG Radios Allg. (ID = 1422252) Radio Condor 431W; AEG Radios Allg. (ID = 1422253) Radio
Use red slider bar for more.
Condor 431W; AEG Radios Allg. (ID = 105422) Radio

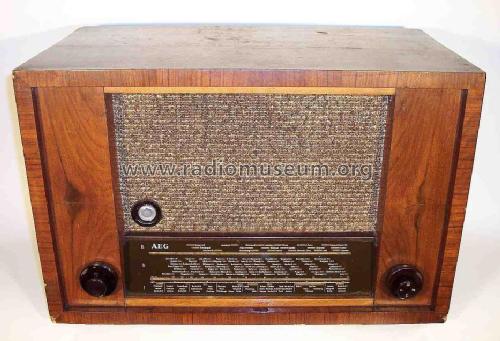

AEG Radios Allg.: Condor 431W [Radio] ID = 105422 933x638
Select picture or schematic to display from thumbnails on the right and click for download.
For model Condor 431W, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1941–1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Condor 431W - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, low profile (big size).
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from AEG (Radios) Allg.Elektricitäts-Ges.
Here you find 791 models, 673 with images and 398 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
