• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 198

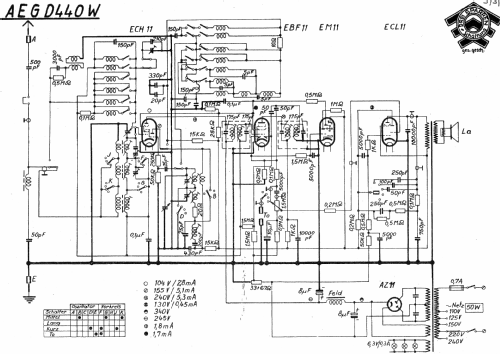

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11 EM11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: D440W - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 550 x 410 x 290 mm / 21.7 x 16.1 x 11.4 inch

• Notes
• 6 Stationstasten (2xKW!)

• Net weight (2.2 lb = 1 kg)
• 12.4 kg / 27 lb 5 oz (27.313 lb)

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung
