Super-Geadem 34WL = 34WS

Super-Geadem 34WL = 34WS; AEG Radios Allg. (ID = 5966) Radio

Super-Geadem 34WL = 34WS; AEG Radios Allg. (ID = 811035) Radio

Super-Geadem 34WL = 34WS; AEG Radios Allg. (ID = 810991) Radio
Super-Geadem 34WL = 34WS; AEG Radios Allg. (ID = 739113) Radio Super-Geadem 34WL = 34WS; AEG Radios Allg. (ID = 96452) Radio
Super-Geadem 34WL = 34WS; AEG Radios Allg. (ID = 476188) Radio Super-Geadem 34WL = 34WS; AEG Radios Allg. (ID = 159151) Radio
Super-Geadem 34WL = 34WS; AEG Radios Allg. (ID = 159149) Radio Super-Geadem 34WL = 34WS; AEG Radios Allg. (ID = 476193) Radio
Super-Geadem 34WL = 34WS; AEG Radios Allg. (ID = 476194) Radio Super-Geadem 34WL = 34WS; AEG Radios Allg. (ID = 159144) Radio
Super-Geadem 34WL = 34WS; AEG Radios Allg. (ID = 159145) Radio Super-Geadem 34WL = 34WS; AEG Radios Allg. (ID = 159147) Radio
Use red slider bar for more.
Super-Geadem 34WL = 34WS; AEG Radios Allg. (ID = 739113) Radio

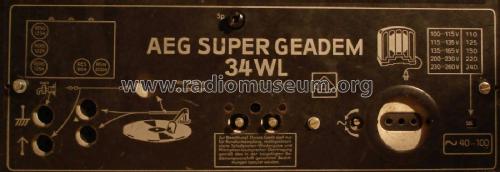

AEG Radios Allg.: Super-Geadem 34WL = 34WS [Radio] ID = 739113 694x832
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Geadem 34WL = 34WS, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: RENS1234 RENS1224 RENS1254 RES964 RGN2004
Main principle Superhet with RF-stage; ZF/IF 132 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Super-Geadem 34WL = 34WS - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 365 x 442 x 520 mm / 14.4 x 17.4 x 20.5 inch
Notes Nawi-Membran
Net weight (2.2 lb = 1 kg) 22.1 kg / 48 lb 10.9 oz (48.678 lb)
Price in first year of sale 305.00 RM
Source of data Radio-Katalog Fricke 1934/35 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in AEG Hilfsbuch für den Funkhändler
Literature/Schematics (1) Radio-Katalog, Mix & Genest Hansawerke, 1935
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
