Geador W

Geador W; AEG Radios Allg. (ID = 6267) Radio
Geador W; AEG Radios Allg. (ID = 1765479) Radio Geador W; AEG Radios Allg. (ID = 2344073) Radio
Geador W; AEG Radios Allg. (ID = 13) Radio Geador W; AEG Radios Allg. (ID = 973936) Radio
Geador W; AEG Radios Allg. (ID = 973937) Radio Geador W; AEG Radios Allg. (ID = 973938) Radio
Geador W; AEG Radios Allg. (ID = 1765445) Radio Geador W; AEG Radios Allg. (ID = 828953) Radio
Use red slider bar for more.
Geador W; AEG Radios Allg. (ID = 1765479) Radio
AEG Radios Allg.: Geador W [Radio] ID = 1765479 892x581
Select picture or schematic to display from thumbnails on the right and click for download.
For model Geador W, AEG (Radios) Allg.Elektricitäts-Ges.:
aus admin.de

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1929–1932 Category: Broadcast Receiver - or past WW2 Tuner

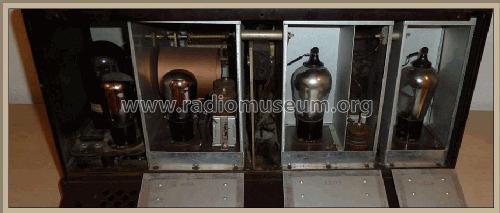

Valves / Tubes 6: RENS1204 RENS1204 REN1104 REN1004 RE604 RGN1054
Main principle TRF with regeneration; 2 Special; 2 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110*220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Geador W - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, slant panel.

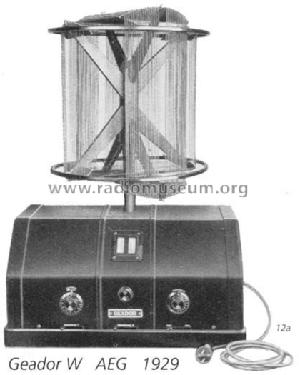

Notes Pult, oben Rahmenant. [569]
Price in first year of sale 975.00 RM !
Source of data Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb

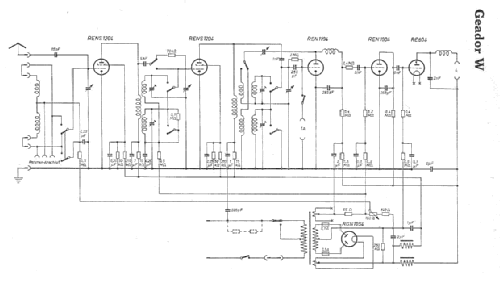

Circuit diagram reference Lange + FS-Bestückungstabellen
Mentioned in AEG Hilfsbuch für den Funkhändler

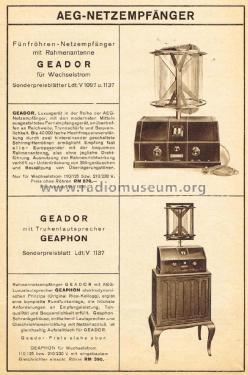

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from AEG (Radios) Allg.Elektricitäts-Ges.
Here you find 803 models, 689 with images and 406 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
