Geatrix 301W

Geatrix 301W; AEG Radios Allg. (ID = 6289) Radio
Geatrix 301W; AEG Radios Allg. (ID = 1158841) Radio Geatrix 301W; AEG Radios Allg. (ID = 109405) Radio
Geatrix 301W; AEG Radios Allg. (ID = 461673) Radio Geatrix 301W; AEG Radios Allg. (ID = 109406) Radio
Geatrix 301W; AEG Radios Allg. (ID = 461674) Radio Geatrix 301W; AEG Radios Allg. (ID = 1273850) Radio
Geatrix 301W; AEG Radios Allg. (ID = 1273853) Radio Geatrix 301W; AEG Radios Allg. (ID = 2379975) Radio
Use red slider bar for more.
Geatrix 301W; AEG Radios Allg. (ID = 1158841) Radio
AEG Radios Allg.: Geatrix 301W [Radio] ID = 1158841 587x382
Select picture or schematic to display from thumbnails on the right and click for download.
For model Geatrix 301W, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1931–1933 Category: Broadcast Receiver - or past WW2 Tuner

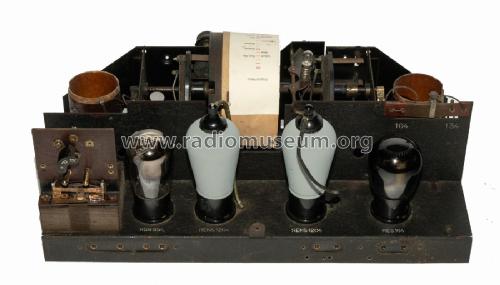

Valves / Tubes 4: RENS1204 RENS1204 RE134 or RES164 RGN354
Main principle TRF with regeneration; 1 Special; 1 AF stage(s); Reaction
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-230 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Geatrix 301W - AEG Radios Allg.Elektricitäts-

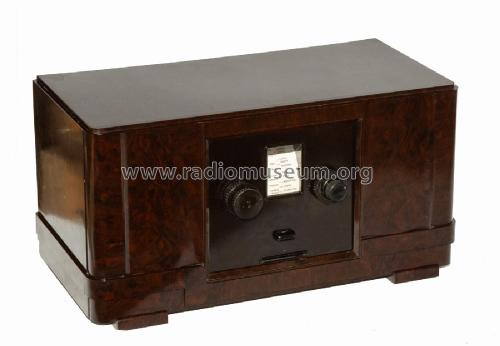

Material Bakelite case
Dimensions (WHD) 415 x 270 x 210 mm / 16.3 x 10.6 x 8.3 inch
Notes modifiziertes Gehäuse des Vorläufers Geatrix 31W.
Price in first year of sale 173.00 RM +
Source of data Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen
Mentioned in Katalog Radio-Zentrale Prohaska 1932/33
