Groß-Super 4-76WK

Groß-Super 4-76WK; AEG Radios Allg. (ID = 5924) Radio

Groß-Super 4-76WK; AEG Radios Allg. (ID = 13245) Radio

Groß-Super 4-76WK; AEG Radios Allg. (ID = 844253) Radio

Groß-Super 4-76WK; AEG Radios Allg. (ID = 13247) Radio

Groß-Super 4-76WK; AEG Radios Allg. (ID = 10010) Radio

Groß-Super 4-76WK; AEG Radios Allg. (ID = 13246) Radio
Groß-Super 4-76WK; AEG Radios Allg. (ID = 200532) Radio Groß-Super 4-76WK; AEG Radios Allg. (ID = 200530) Radio
Groß-Super 4-76WK; AEG Radios Allg. (ID = 200531) Radio Groß-Super 4-76WK; AEG Radios Allg. (ID = 200528) Radio
Groß-Super 4-76WK; AEG Radios Allg. (ID = 200469) Radio Groß-Super 4-76WK; AEG Radios Allg. (ID = 537300) Radio
Groß-Super 4-76WK; AEG Radios Allg. (ID = 644248) Radio Groß-Super 4-76WK; AEG Radios Allg. (ID = 1814187) Radio
Groß-Super 4-76WK; AEG Radios Allg. (ID = 2440451) Radio Groß-Super 4-76WK; AEG Radios Allg. (ID = 2440452) Radio
Use red slider bar for more.

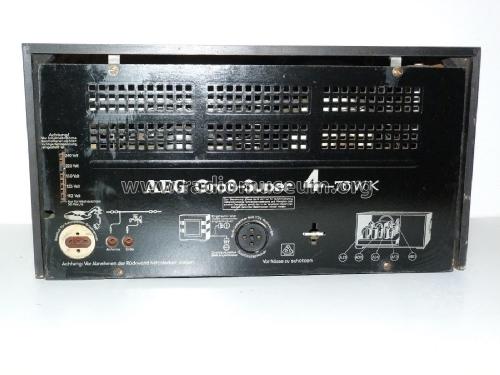

Groß-Super 4-76WK; AEG Radios Allg. (ID = 200532) Radio
AEG Radios Allg.: Groß-Super 4-76WK [Radio] ID = 200532 886x664
Select picture or schematic to display from thumbnails on the right and click for download.
For model Groß-Super 4-76WK, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ACH1 AF3 ABC1 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Groß-Super 4-76WK - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 575 x 310 x 295 mm / 22.6 x 12.2 x 11.6 inch
Notes

Feldstärkeanzeige mit Schattenanzeiger, variable Bandbreite.

Paralleltype zum Telefunken Super 664WK.

Net weight (2.2 lb = 1 kg) 17.5 kg / 38 lb 8.7 oz (38.546 lb)
Price in first year of sale 338.00 RM
Source of data Radio-Zentrale Prohaska 1936/37 / Radiokatalog Band 1, Ernst Erb

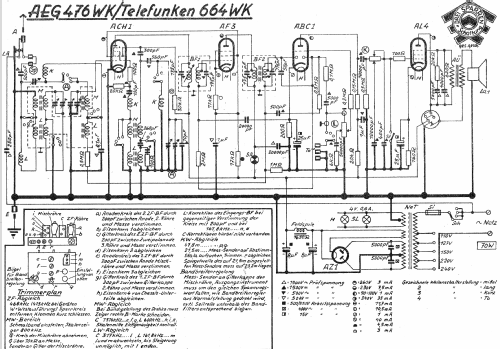

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from AEG (Radios) Allg.Elektricitäts-Ges.
Here you find 810 models, 693 with images and 410 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
