Super-Geador 34WLK (34WS)

Super-Geador 34WLK ; AEG Radios Allg. (ID = 5972) Radio

Super-Geador 34WLK ; AEG Radios Allg. (ID = 6406) Radio
Super-Geador 34WLK ; AEG Radios Allg. (ID = 707660) Radio Super-Geador 34WLK ; AEG Radios Allg. (ID = 3752) Radio
Super-Geador 34WLK ; AEG Radios Allg. (ID = 3753) Radio Super-Geador 34WLK ; AEG Radios Allg. (ID = 3754) Radio

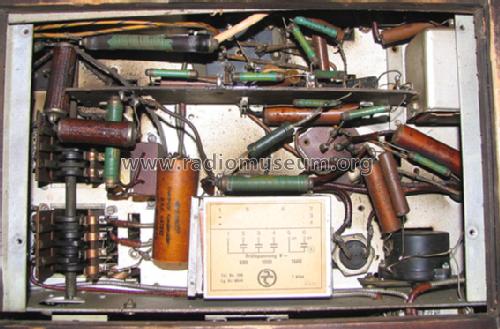

Super-Geador 34WLK ; AEG Radios Allg. (ID = 18200) Radio Super-Geador 34WLK ; AEG Radios Allg. (ID = 170703) Radio
Super-Geador 34WLK ; AEG Radios Allg. (ID = 1579952) Radio Super-Geador 34WLK ; AEG Radios Allg. (ID = 1591653) Radio

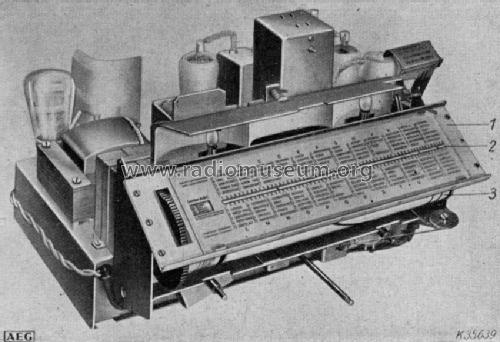

Super-Geador 34WLK ; AEG Radios Allg. (ID = 1591654) Radio Super-Geador 34WLK ; AEG Radios Allg. (ID = 1725565) Radio
Use red slider bar for more.
Super-Geador 34WLK ; AEG Radios Allg. (ID = 707660) Radio
AEG Radios Allg.: Super-Geador 34WLK [Radio] ID = 707660 456x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Geador 34WLK (34WS), AEG (Radios) Allg.Elektricitäts-Ges.:
Bild zum gleich aussehenden Modell automatisch kopiert statt wie bisher verknüpft (05.Jan.2010 EE).

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1934–1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: RENS1234 RENS1224 RENS1234 REN924 RES964 RGN2004
Main principle Superhet with RF-stage; ZF/IF 132 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super-Geador 34WLK - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 365 x 442 x 547 mm / 14.4 x 17.4 x 21.5 inch
Notes Feldstärkeanzeige
Price in first year of sale 395.00 RM
Collectors' prices
Source of data Radio-Katalog Fricke 1934/35 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in AEG Hilfsbuch für den Funkhändler
Literature/Schematics (1) Radio-Katalog, Mix & Genest Hansawerke, 1935
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
