L-C Checker 95
Aerovox (Wireless) Corp.; New York, NY and New Bedford, MA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Aerovox (Wireless) Corp.; New York, NY and New Bedford, MA
- Year
- 1939
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 339449

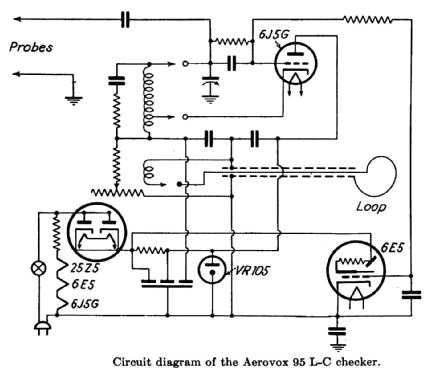

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: L-C Checker 95 - Aerovox Wireless Corp.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Aerovox L-C Checker Model 95 has the following features:
- Alignment of RF circuits, IF narrow and broad band, Tuning wavetraps, etc.
- Capacitor Range: 400pF to 1uF, +/-10%
- Frequency Range: 60 kHz to 26 MHz in 6 Ranges
- In-circuit Testing
- Magic Eye Tuning Indicatior
Note: This model is powered by the AC main but is not transformer isolated from the circuit or chassis. While the AC Neutral or Line (original plug was non-polarized) is isolated from the chassis by a capacitor, that original capacitor was not a safety grade (X1/Y2 type for example) and most likely bad which may result in high voltage on the chassis and probe tip. Severe personal injury and Unit-Under-Test (UUT) circuitry damage may occur if this model is used without proper safety restoration first. Using an AC isolation transformer is still suggested for safety, even after proper restoration.
- Price in first year of sale
- 29.50 USD
- Mentioned in
- Principles and Practice of Radio Servicing, H.J.Hicks, 1943
- Literature/Schematics (1)
- Radio Today (and Television) (Sept. 1939, page 36, "Aerovox L-C Checker...new instrument")
- Literature/Schematics (2)
- Radio Craft (Feb 1940, pages 459 & 503, Model 95 review)
- Author
- Model page created by Wolfgang Müllner. See "Data change" for further contributors.
