425; Albis, Albiswerke AG (ID = 2130796) Radio
Albis, Albiswerke AG: 425 [Radio] ID = 2130796 1400x1021
Select picture or schematic to display from thumbnails on the right and click for download.

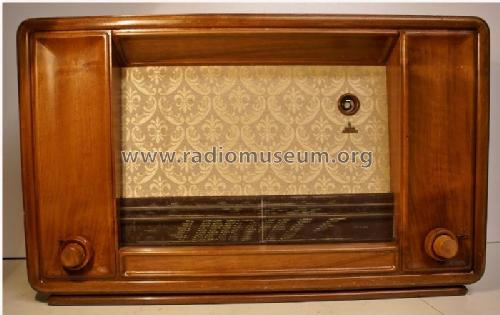

For model 425, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF13 ECH11 EBF11 EF11 EM4 EL12 AZ12
Main principle Superhet with RF-stage; ZF/IF 471 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 24 cm = 9.4 inch
Power out
from Radiomuseum.org Model: 425 - Albis, Albiswerke AG Siemens
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 665 x 260 x 410 mm / 26.2 x 10.2 x 16.1 inch
Notes Aut.BBr., Heimatstil!
Net weight (2.2 lb = 1 kg) 18.5 kg / 40 lb 12 oz (40.749 lb)
Price in first year of sale 630.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
