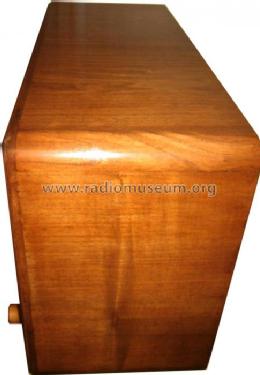

436; Albis, Albiswerke AG (ID = 208911) Radio
Use red slider bar for more.
436; Albis, Albiswerke AG (ID = 208908) Radio
Albis, Albiswerke AG: 436 [Radio] ID = 208908 933x581
Select picture or schematic to display from thumbnails on the right and click for download.
For model 436, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1942/1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF13 ECH11 EBF11 EF11 EM4 EL12 AZ12
Main principle Superhet with RF-stage; ZF/IF 471 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 436 - Albis, Albiswerke AG Siemens
Material Wooden case
Dimensions (WHD) 665 x 260 x 410 mm / 26.2 x 10.2 x 16.1 inch
Notes Heimatstil
Price in first year of sale 690.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
