• Year
  • 1934–1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 324869

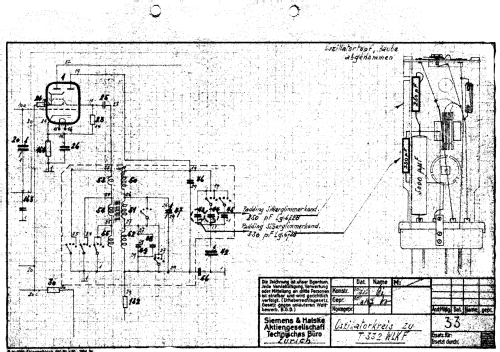

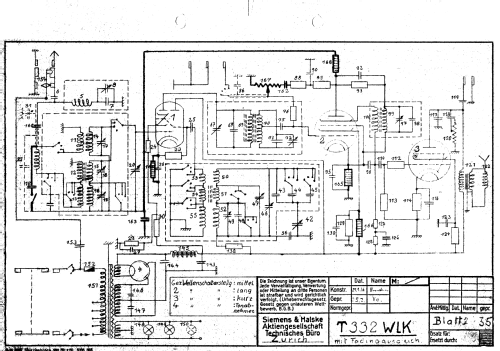

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz; Reflex
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 2.5 W (unknown quality)
  • from Radiomuseum.org
  • Model: T 332WLK - Albis, Albiswerke AG Siemens
  • Net weight (2.2 lb = 1 kg)
  • 15 kg / 33 lb 0.6 oz (33.04 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Adrian Riesen. See "Data change" for further contributors.
