Meistersuper 332WLK (T332WLK)

Meistersuper 332WLK ; Telefunken (ID = 20285) Radio

Meistersuper 332WLK ; Telefunken (ID = 718144) Radio

Meistersuper 332WLK ; Telefunken (ID = 718146) Radio

Meistersuper 332WLK ; Telefunken (ID = 37609) Radio

Meistersuper 332WLK ; Telefunken (ID = 37610) Radio

Meistersuper 332WLK ; Telefunken (ID = 11043) Radio

Meistersuper 332WLK ; Telefunken (ID = 362457) Radio

Meistersuper 332WLK ; Telefunken (ID = 362458) Radio

Meistersuper 332WLK ; Telefunken (ID = 20284) Radio

Meistersuper 332WLK ; Telefunken (ID = 20286) Radio
Meistersuper 332WLK ; Telefunken (ID = 2032657) Radio Meistersuper 332WLK ; Telefunken (ID = 2032658) Radio
Meistersuper 332WLK ; Telefunken (ID = 2032659) Radio Meistersuper 332WLK ; Telefunken (ID = 2032660) Radio
Meistersuper 332WLK ; Telefunken (ID = 2032661) Radio Meistersuper 332WLK ; Telefunken (ID = 2032663) Radio
Meistersuper 332WLK ; Telefunken (ID = 2032664) Radio Meistersuper 332WLK ; Telefunken (ID = 1793586) Radio
Meistersuper 332WLK ; Telefunken (ID = 47722) Radio Meistersuper 332WLK ; Telefunken (ID = 49976) Radio
Use red slider bar for more.
Meistersuper 332WLK ; Telefunken (ID = 2032657) Radio

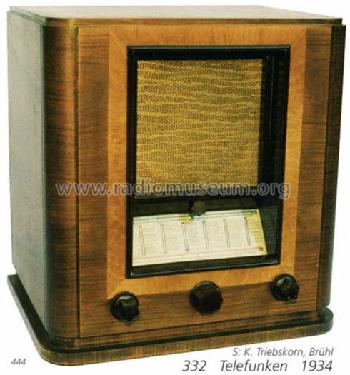

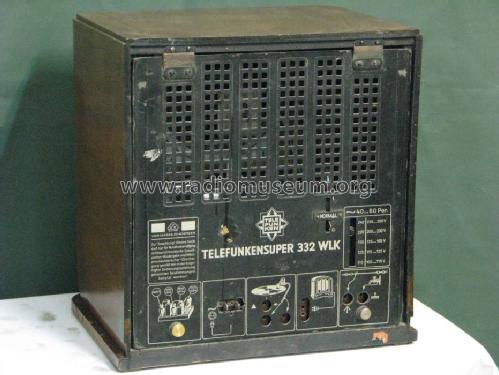

Telefunken: Meistersuper 332WLK [Radio] ID = 2032657 1400x1531
Select picture or schematic to display from thumbnails on the right and click for download.
For model Meistersuper 332WLK (T332WLK), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1934–1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ACH1 RENS1234 RENS1374d RGN1064
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz; Super, reaction, but not adjustable
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Meistersuper 332WLK - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 397 x 410 x 295 mm / 15.6 x 16.1 x 11.6 inch
Notes Paralleltype zum AEG 34WLK und Siemens 37WLK.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 284.00 RM
Collectors' prices
Source of data Radio-Katalog Fricke 1934/35 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Radio-Katalog, Mix & Genest Hansawerke, 1935
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
