• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1955 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 213105

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6AV6 ECC83 or 12AD7 or 12AX7 6V6GT 6V6GT 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 16 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Knight 93SZ737 - Allied Radio Corp. Knight,

• Shape
• Book-shelf unit.

• Notes

• The Knight model 93SZ737 is an AC operated 16 Watt 3 channel audio amplifier with a 4-speed manual record player.
  See also Knight 93SZ505.

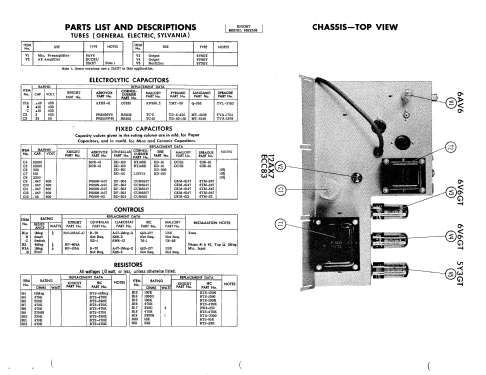

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 10-57, Set 375, Folder 12)

• Author
• Model page created by Oscar Herrera. See "Data change" for further contributors.
