430L

430L; Allocchio Bacchini (ID = 868507) Radio
430L; Allocchio Bacchini (ID = 1519963) Radio 430L; Allocchio Bacchini (ID = 1519965) Radio

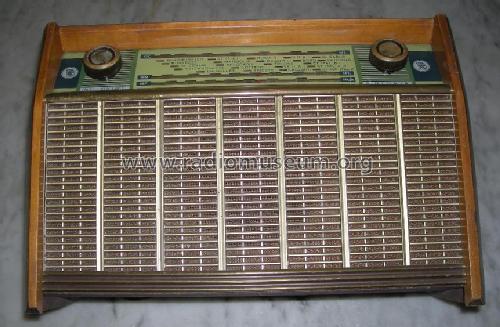

430L; Allocchio Bacchini (ID = 1519968) Radio 430L; Allocchio Bacchini (ID = 1519969) Radio
430L; Allocchio Bacchini (ID = 1519971) Radio
Use red slider bar for more.
430L; Allocchio Bacchini (ID = 1519963) Radio
Allocchio Bacchini: 430L [Radio] ID = 1519963 933x642
Select picture or schematic to display from thumbnails on the right and click for download.
For model 430L, Allocchio Bacchini (Radialba); Milano

Country:  Italy
Manufacturer / Brand:  Allocchio Bacchini (Radialba); Milano
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EABC80 EL84
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: 430L - Allocchio Bacchini Radialba;
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 300 x 200 x 120 mm / 11.8 x 7.9 x 4.7 inch
Notes

Questo modello oltre alla funzione Radio OM OC e MF, possiede anche la funzione "Fono".

Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Source of data Guida Pratica Antique Radio V (2003)

Model page created by Pietro Gallia. See "Data change" for further contributors.
