Radiolette 24 Ch=C124 AWA Drawing CD255

Radiolette 24 Ch=C124; Amalgamated Wireless (ID = 1131210) Radio

Radiolette 24 Ch=C124; Amalgamated Wireless (ID = 2395336) Radio
Radiolette 24 Ch=C124; Amalgamated Wireless (ID = 161604) Radio Radiolette 24 Ch=C124; Amalgamated Wireless (ID = 2443708) Radio
Radiolette 24 Ch=C124; Amalgamated Wireless (ID = 2380536) Radio
Use red slider bar for more.
Radiolette 24 Ch=C124; Amalgamated Wireless (ID = 161604) Radio
Amalgamated Wireless: Radiolette 24 Ch=C124 [Radio] ID = 161604 700x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiolette 24 Ch=C124 AWA Drawing CD255, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 78 6A7 6B7 42 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz; Reflex
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Radiolette 24 Ch=C124 [AWA Drawing CD255] - Amalgamated Wireless
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 11.5 x 8.5 x 5.75 inch / 292 x 216 x 146 mm
Notes

5 valve, reflexed superhet with an IF of 175 kHz.

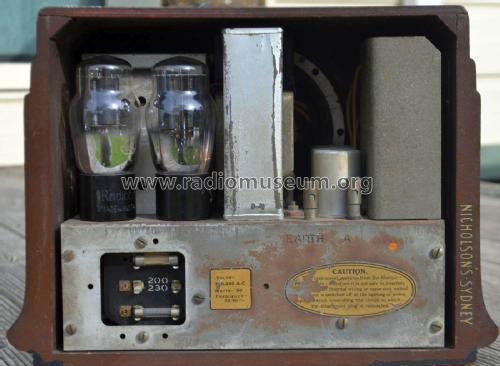

Chassis:
This was the first AWA radio to use a reflex circuit.
The tuning capacitor frame is insulated from the chassis and no dial illumination is used.

Chassis was also used in the Consolette Model 34 C124 and console 44 C125.

The loud speaker field resistance for Models 24 and 34 is 1000Ω and the Model 44 is 2000Ω

Two AWA drawings are known for this chassis, CD255 with the volume control controlling the gain of the Reflexed 6B7 and CD264, dated Dec. 1933, in which the volume control controls the gain of the first two valves. There is no date on CD255 and it is not clear as to which was the original circuit. Advertising for the radio started in early November 1933 so it could be assumed that CD264 was the second version.

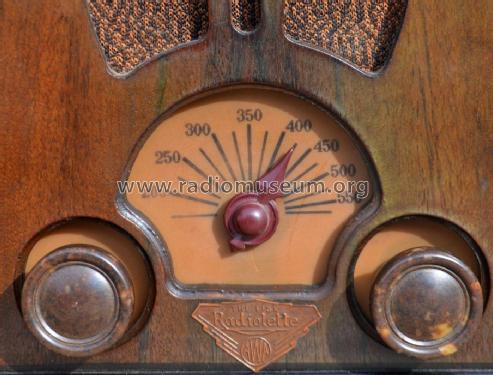

Cabinet:
Small, table model in Queensland Walnut veneer.
The later production of this model had ventilation slots on both sides of the cabinet.

Price in first year of sale 13.98 AUS$
Mentioned in AWA Radiolettes HRSA 1997
Literature/Schematics (2) AWA Radiolette Book 1932-1949 (Edition 4, Jan 2018, Pages 22-25,30 & 32.)
Documents about this model
  AWA Radiolette 24 Pamphlet 422 KB

Model page created by Peter Hughes. See "Data change" for further contributors.
