Radiolette 24 Ch=C124 AWA Drawing CD264

Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

  • Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 310951

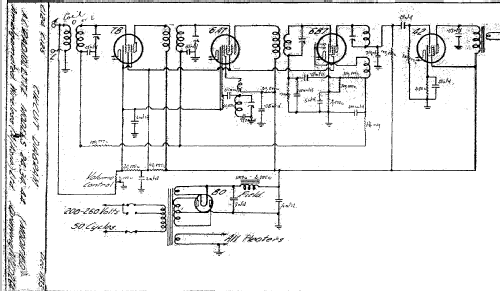

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • ZF/IF 175 kHz; 2 AF stage(s); Reflex
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 200-260 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radiolette 24 Ch=C124 [AWA Drawing CD264] - Amalgamated Wireless
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 11.5 x 8.5 x 5.75 inch / 292 x 216 x 146 mm
  • Notes
  • 5 valve, reflexed superhet with an IF of 175 kHz.

    Chassis:
    This was the first AWA radio to use a reflex circuit.
    The tuning capacitor frame is insulated from the chassis and no dial illumination is used.

    Chassis was also used in the Consolette Model 34 C124 and console 44 C125.
    The loud speaker field resistance for Models 24 and 34 is 1000Ω and the Model 44 is 2000Ω

    Two AWA drawings are known for this chassis, CD255 with the volume control controlling the gain of the Reflexed 6B7 and this model, CD264, dated Dec. 1933, in which the volume control controls the gain of the first two valves. There is no date on CD255 and it is not clear as to which was the original circuit. Advertising for the radio started in early November 1933 so it could be assumed that CD264 was the second version.

    Cabinet:
    Small, table model in Queensland Walnut veneer.
    The later production of this model had ventilation slots on both sides of the cabinet.

  • Price in first year of sale
  • 13.98 AUS £
  • Author
  • Model page created by Gary Cowans. See "Data change" for further contributors.
