Riviera 57B écran 43 cm

Riviera 57B ; Amplix CGTVE; Paris (ID = 287141) Television

Riviera 57B ; Amplix CGTVE; Paris (ID = 287142) Television

Riviera 57B ; Amplix CGTVE; Paris (ID = 287143) Television
Use red slider bar for more.
Riviera 57B ; Amplix CGTVE; Paris (ID = 287141) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  France
Manufacturer / Brand:  Amplix (CGTVE); Paris
Year: 1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: 6BQ7 ECF82 EF85 EF80 EF80 EL84 ECC81 EF80 EBF80 EL84 ECF82 ECL80 ECL80 6BQ6 EY86 PY81 unknown_Tube
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Riviera 57B [écran 43 cm] - Amplix CGTVE; Paris
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Écran 43 cm.

Source of data -- Schematic

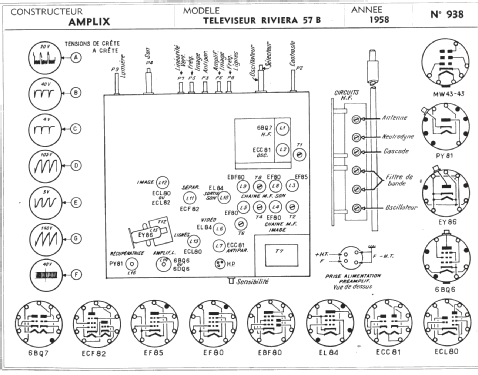

Literature/Schematics (1) Schémathèque Toute la Radio (STR) (No. 938)

Model page created by Peter Hoddow. See "Data change" for further contributors.
