Dynaphone D3

Dynaphone D3; Ansley Radio; New (ID = 790948) Radio
Use red slider bar for more.
Dynaphone D3; Ansley Radio; New (ID = 790948) Radio

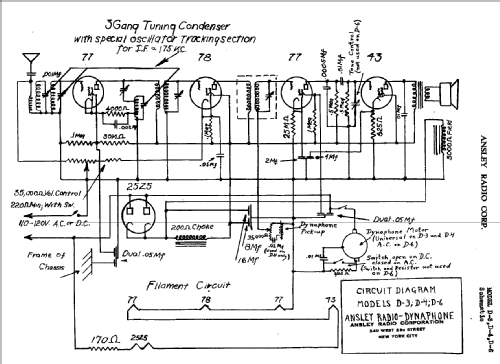

Select picture or schematic to display from thumbnails on the right and click for download.
Country:  United States of America (USA)
Manufacturer / Brand:  Ansley Radio; New York (NY), Trenton (NJ)
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 77 78 77 43 25Z5
Main principle Superheterodyne (common); ZF/IF 175 kHz
Wave bands Broadcast only (MW).
Details Record Player (perh.Changer)
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Model: Dynaphone D3 - Ansley Radio; New York NY,
Material Leather / canvas / plastic - over other material
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 13.5 x 14 x 7.5 inch / 343 x 356 x 191 mm
Price in first year of sale 69.50 USD
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 5 = ca. 1934 and before
Literature/Schematics (1) Radio Retailing (Radio & Television R.) (October 1933 issue, page 19)

All listed radios etc. from Ansley Radio; New York (NY), Trenton (NJ)
Here you find 113 models, 22 with images and 107 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
