FE Petite

FE Petite ; Arena, Horsens (ID = 1347820) Radio FE Petite ; Arena, Horsens (ID = 1347856) Radio
FE Petite ; Arena, Horsens (ID = 1347864) Radio FE Petite ; Arena, Horsens (ID = 1347865) Radio
FE Petite ; Arena, Horsens (ID = 1347866) Radio FE Petite ; Arena, Horsens (ID = 1347869) Radio
FE Petite ; Arena, Horsens (ID = 1347880) Radio FE Petite ; Arena, Horsens (ID = 1347884) Radio
FE Petite ; Arena, Horsens (ID = 1347887) Radio
Use red slider bar for more.

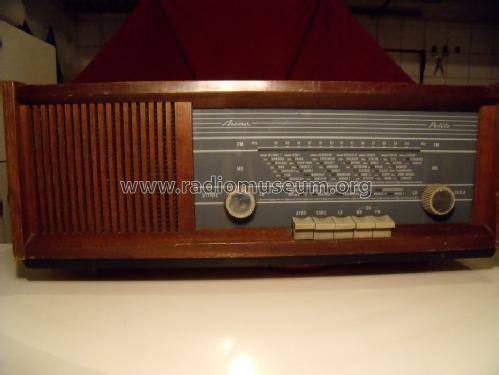

FE Petite ; Arena, Horsens (ID = 1347820) Radio
Arena, Horsens: FE Petite [Radio] ID = 1347820 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model FE Petite, Arena, Horsens

Country:  Denmark
Manufacturer / Brand:  Arena, Horsens
alternative name

Hede Nielsen's Fabrikker A/S
Year: 1964 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF183 EABC80 EL95
Main principle Super-Heterodyne (Super in general); 2 AF stage(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: FE Petite - Arena, Horsens
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 440 x 169 x 186 mm / 17.3 x 6.7 x 7.3 inch
Collectors' prices

Model page created by Joaquín Méndez. See "Data change" for further contributors.



All listed radios etc. from Arena, Horsens
Here you find 35 models, 30 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
