Gran Premio 5

Gran Premio 5; ART - Panart; Milano (ID = 945129) Radio
Use red slider bar for more.
Gran Premio 5; ART - Panart; Milano (ID = 945129) Radio

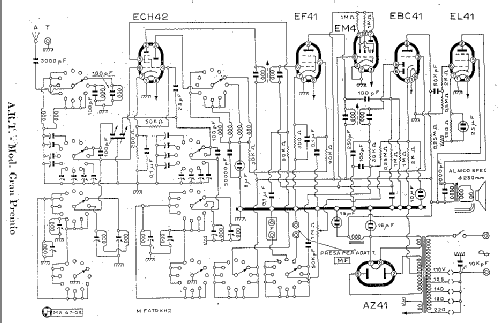

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  ART - Panart; Milano
Brand

Depaphon
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EF41 EBC41 EL31 EM4 AZ41
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Gran Premio 5 - ART - Panart; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 700 x 370 x 280 mm / 27.6 x 14.6 x 11 inch
Source of data Guida Pratica Antique Radio IV (2001)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
