Sconosciuto (Unknown)

Sconosciuto ; ART - Panart; Milano (ID = 1336421) Radio Sconosciuto ; ART - Panart; Milano (ID = 1336423) Radio
Use red slider bar for more.

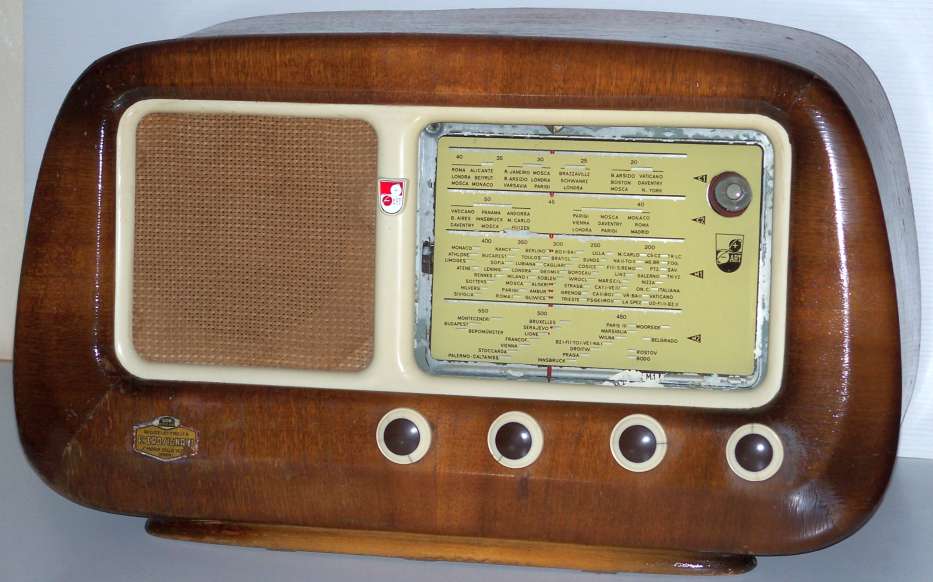

Sconosciuto ; ART - Panart; Milano (ID = 1336421) Radio
ART - Panart; Milano: Sconosciuto [Radio] ID = 1336421 933x582
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sconosciuto (Unknown), ART - Panart; Milano

Country:  Italy
Manufacturer / Brand:  ART - Panart; Milano
Brand

Depaphon
Year: 1951 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EF41 EBC41 EL41 EM4 AZ41
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
Power out
from Radiomuseum.org Model: Sconosciuto - ART - Panart; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 310 x 210 mm / 21.3 x 12.2 x 8.3 inch
Notes

Le OM sono divise in due bande

Net weight (2.2 lb = 1 kg) 6.3 kg / 13 lb 14 oz (13.877 lb)

Model page created by Roberto Gabba. See "Data change" for further contributors.



All listed radios etc. from ART - Panart; Milano
Here you find 79 models, 28 with images and 28 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
ART - Panart; Milano: Sconosciuto
Threads: 1 | Posts: 3
Hits: 1518     Replies: 2
radio ART modello sconosciuto
Roberto Gabba
15.Nov.12
  1

 Salve, non so identificare questo modello della mia collezione , qualcuno puo' aiutarmi ? grazie

Le valvole installate sono 6 : ECH42 EF41 EBC41 EL41 EM4 AZ41

roberto gabba

Attachments

Wolfgang Bauer
15.Nov.12
  2

Salve,

possibile modello ==> ART Billy / 0 ?

Saluti WB.

Roberto Gabba
15.Nov.12
  3

Salve Wolfang,

La Billy//0 ha le OL mentre il mio modello non le ha, inoltre il diametro dell'altopartante e' piu grande (19 cm contro 16 cm della Billy/0) . Penso ai modelli 62 o RM 62 ? ma non ho elementi per verificarlo. Grazie per il tuo interessamento!

The model Billy/0 has LW band and my model doesen't, besides the speaker of my model is bigger (19 cm versus 16 cm of the Billy/0. I assume a model 62 or RM62 ? but I have no  evidence to verify that. Thanks a lot for your concern!

roberto gabba


ART - Panart; Milano: Sconosciuto
End of forum contributions about this model
