756; Asa, Turku (ID = 944666) Radio

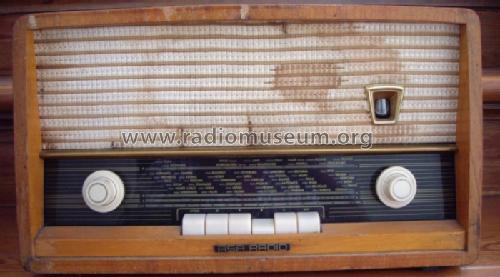

Asa, Turku: 756 [Radio] ID = 944666 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 756, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL95
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 756 - Asa, Turku
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 440 x 260 x 200 mm / 17.3 x 10.2 x 7.9 inch
Notes Speaker: 5 x 8" elliptical. Rectifier: B250C100 Selenium Scale-bulb: 6,3V / 0,3A
Price in first year of sale 28'500.00 FIM

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Asa, Turku
Here you find 296 models, 209 with images and 126 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
