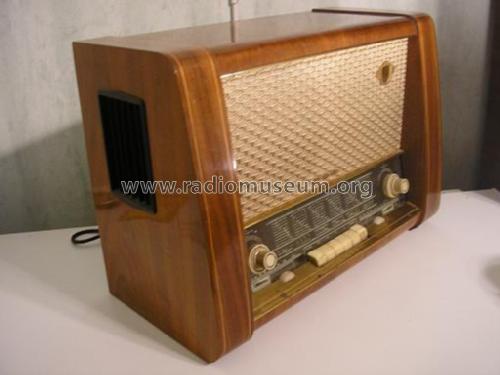

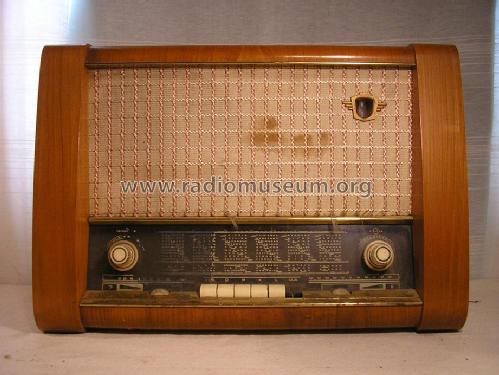

827; Asa, Turku (ID = 1363820) Radio
Asa, Turku: 827 [Radio] ID = 1363820 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 827, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EC92 EC92 ECH81 EF85 EM80 EABC80 EL84
Main principle Superheterodyne (common); ZF/IF 485 kHz; 1 AF stage(s)
Tuned circuits 10 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
Power out 3.4 W (unknown quality)
from Radiomuseum.org Model: 827 - Asa, Turku
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 560 x 390 x 270 mm / 22 x 15.4 x 10.6 inch
Notes + 2× 4" Electrostaic speakers.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 38'500.00 FIM
Source of data -- Collector info (Sammler)

Model page created by Ake Nyholm. See "Data change" for further contributors.
