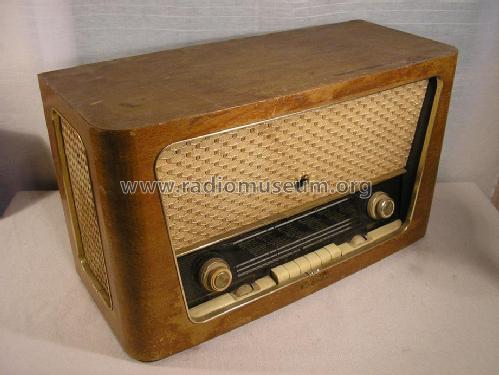

837; Asa, Turku (ID = 1289484) Radio 837; Asa, Turku (ID = 1364602) Radio
837; Asa, Turku (ID = 1364603) Radio 837; Asa, Turku (ID = 1364604) Radio

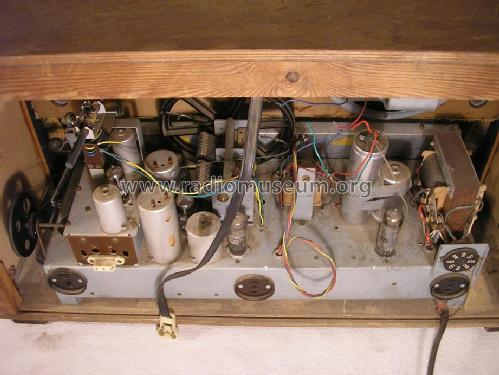

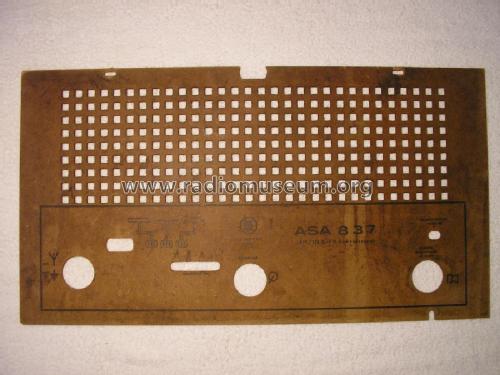

837; Asa, Turku (ID = 1364605) Radio 837; Asa, Turku (ID = 2058709) Radio
Use red slider bar for more.

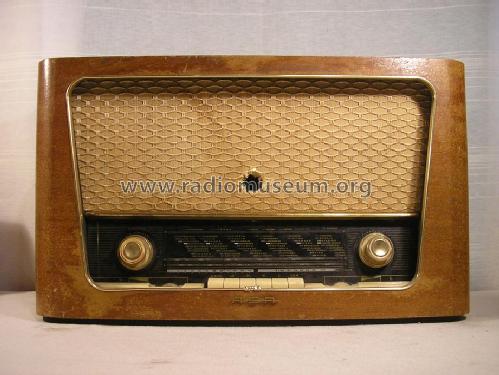

837; Asa, Turku (ID = 1289484) Radio
Asa, Turku: 837 [Radio] ID = 1289484 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 837, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EC92 EC92 ECH81 EF85 EM80 EABC80 EL84
Main principle Superheterodyne (common); ZF/IF 485/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: 837 - Asa, Turku
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Rectifier: B 250 C 100 Scale-bulbs: 6,3V / 0,5A

Model page created by Timo Rantasaari. See "Data change" for further contributors.
