845; Asa, Turku (ID = 2058294) Radio
Asa, Turku: 845 [Radio] ID = 2058294 1280x806
Select picture or schematic to display from thumbnails on the right and click for download.

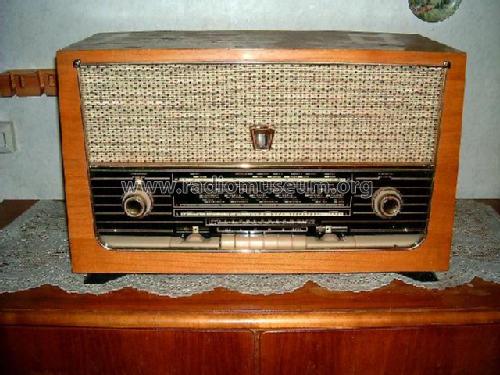

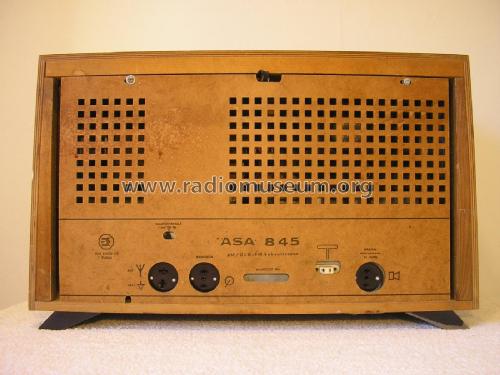

For model 845, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EC92 EC92 ECH81 EF85 EM80 EABC80 EL84
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 127, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 845 - Asa, Turku
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 580 x 360 x 260 mm / 22.8 x 14.2 x 10.2 inch
Notes
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
External source of data Jari Aalto

Model page created by Ernst Erb. See "Data change" for further contributors.
